Product Description
Jiangxi Ruihua brand is a production-oriented manufacturer specializing in the wholesale of charging piles. We provide OEM,ODM processing services for operators, wholesalers and traders with their customized logo print per their request, and provide very favorable prices and high-quality products.

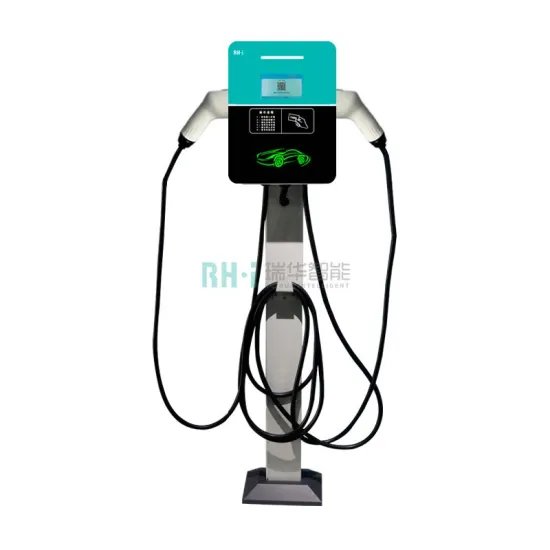

Now We introduce our new design AC 14kw dual-guns slow city charger, it can be wallbox/wall-mounted or pole-mounted for installation, one Wallbox Ac Charger carries two gun heads, one pile serves two vehicles, which can be used for two adjacent parking spaces, or the installation of opposite parking spaces, The equipment displays voltage and current, The cost of equipment and installation are cheaper than purchasing two 7kw Ac Ev Charger separately, and one Ev Charger with double guns saves the construction cost and equipment cost, and this charging pile is also rainproof and dustproof, which is the first choice for self-use and slow charging stations.
14kw double guns AC Charger Specification
|
Structure Design |
Size: |
278*398*110mm(W*H*D) |
|
Housing Material |
Galvanized Steel Plate |
|
|
Panel Material |
Tempered Glass Panel |
|
|
Electricity |
Rated Power |
14kw(2*7kw) |
|
Rated Voltage |
220V/AC±15% |
|
|
Rated Current |
2*32A |
|
|
Frequency |
50Hz |
|
|
Accuracy |
1.0 Grade |
|
|
Input Voltage Range |
220V/AC±15% |
|
|
Leakage Protection |
Yes |
|
|
Function |
LED Display |
4.3” LED Screen |
|
Start Mode |
APP,Plug&Play,RFID Card |
|
|
Communication |
Ethernet,WIFI,4G |
|
|
Indicator |
Yes |
|
|
Numbers of Gun |
2 |
|
|
Safe |
Protection |
overload protection,over/under voltage protection,short circuit protection,leakage protection,Emergency stop button |
|
|
Altitude |
≤2000 |
|
|
Installation |
Wall mounted or Pole mounted |
|
Environment |
Work Temperature |
-20℃～+50℃ |
|
|
Ingress Protection |
IP54 |
|
|
Noise |
≤65b |
