Product Description
At Ruihua, we understand that every charging need is unique. Our Customized EV Charging Pile exemplifies our dedication to providing tailor-made solutions for electric vehicle charging. As experienced EV charging station manufacturers, we combine expertise with innovation to deliver a charging station that seamlessly integrates into your environment.
Ruihua Intelligent AC charging pile and DC charging pile is characterized with high stability, good performanc and CE certified. AC charging pile is specially charging for a power supply device which is fixed and installed in the roadside parking lot and other places in the service area. DC charging pile (or non-vehicle-mounted charger) directly outputs direct current to charge the vehicle-mounted battery.Our power includes 30kW,60kW, 80kW,120kW, 150kW,160kW,180kW,240kW,280kW,320kW,360kW,600kW and the charging speed is fast.
Multi-standard: CCS1, CCS2
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )
|
Input Connection |
3-Phase : 3P+N+PE |
|
Input Voltage |
400V/AC ±15% |
|
Frequency |
50Hz or 60Hz |
|
THDi |
≤5% |
|
Power Factor |
≥0.98 |
|
Output Voltage |
150Vdc - 1000Vdc |
|
Max. Output Current |
200A（ 250A optional） |
|
Rated Power |
120kW - 240kW |
|
User Interface & Control |
|
|
LCD Display |
7" Color Touch Screen |
|
LED Indicator |
Green/Yellow/Red |
|
Charging Interface |
CCS2 Plug( CCS1 Plug / CHAdeMO optional ) |
|
Number of Charging Interface |
2 |
|
Energy Measuring |
Embedded meter, with 1% accuracy |
|
Communication |
|
|
Backend |
Ethernet( Bluetooth / Wi-Fi/ 4G Optional ) |
|
Charging Protocol |
ISO 15118 , DIN 70121 |
|
Backend Protocol |
OCPP 1.6 JSON ( OCPP2.0.1 ) |
|
Protection |
|
|
Residual Current Device |
Yes |
|
Internal Fuse |
Yes |
|
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- |
|
Environmental |
|
|
Operating Temperature |
-30℃—+55℃ |
|
Storage Temperature |
-40℃—+75℃ |
|
Operating Humidity |
Max. 90% RH, Non-Condensing |
|
Operating Altitude |
≤ 2000m |
|
IP, IK Level |
IP65, IK10 |
|
Cooling Method |
Independent air duct |
|
Mechanical |
|
|
Product Dimension |
1780*800*950 mm (H*W*D) |
|
Charging Cable Length |
5m |
|
Weight |
60kw: 390kg; 120kw: 420kg; |
|
Mounting |
Free Standing |
|
Certifications |
|
|
Certifificate |
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 |
|
Safety |
CE |
|
EMC |
Class B |
♦Advanced Technology: Our DC EV Charging Station incorporates cutting-edge technology to ensure efficient and reliable charging for all electric vehicles.
♦Flexibility and Customization: As vehicle charging station manufacturers, we recognize the importance of adapting to diverse requirements. Our charging pile can be customized to suit your specific branding and functional preferences.
♦Reliability: As trusted manufacturers of charging stations, we prioritize reliability. Our charging pile is built to withstand various environmental conditions while consistently delivering optimal performance.
♦Seamless Integration: Whether you're an urban planner, a commercial property owner, or a fleet manager, our Customized EV Charging Pile seamlessly integrates into various settings, offering a convenient and user-friendly charging experience.
♦Industry Expertise: With a proven track record as electric charging station manufacturers, we bring industry expertise to every product we offer. Our solutions are designed to meet the evolving demands of the electric vehicle market.
Ruihua stands as a distinguished name among EV charging station manufacturers, and our Customized EV Charging Pile exemplifies our commitment to innovation, sustainability, and customer satisfaction. As vehicle charging station manufacturers, we empower you to play an active role in shaping the electric future by providing reliable and adaptable charging solutions.

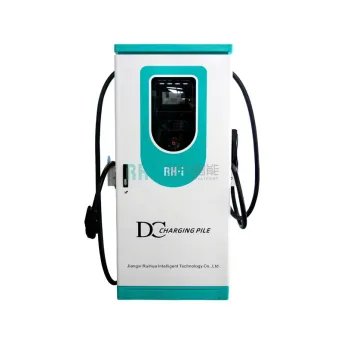

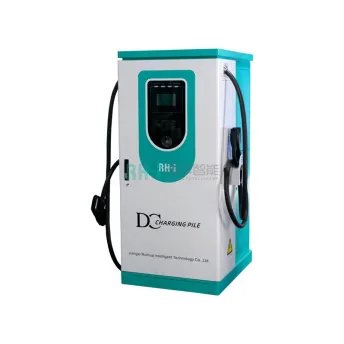

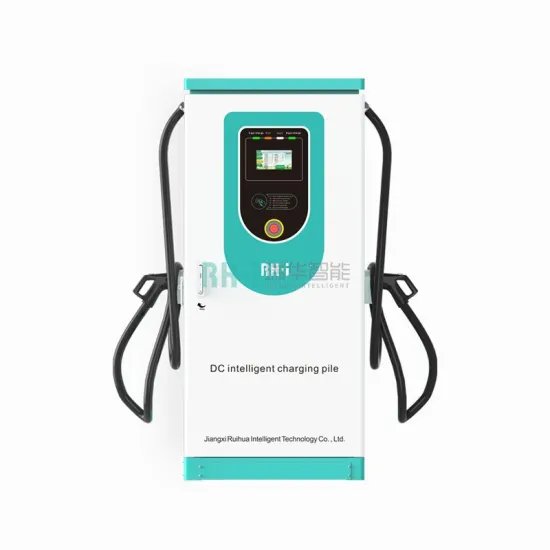

Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.
Join us in the journey towards a cleaner and greener world. Contact Ruihua today to explore how our Customized EV Charging Pile can meet your unique charging needs and contribute to the growth of electric mobility. As manufacturers of charging stations, we are dedicated to revolutionizing the way we power our vehicles, one charge at a time.
