Car Charging Pile

Charging piles (or charging station) can convert electricity on the grid into electricity standards that can be used to charge electric vehicles. Charging piles generally provide two charging methods: slow charging and fast charging. According to the installation method, charging piles can be divided into floor-mounted charging piles and wall-mounted charging piles.

Product Description

Charging piles (or charging station) can convert electricity on the grid into electricity standards that can be used to charge electric vehicles. Charging piles generally provide two charging methods: slow charging and fast charging. According to the installation method, charging piles can be divided into floor-mounted charging piles and wall-mounted charging piles.

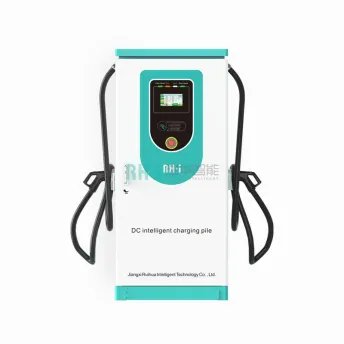

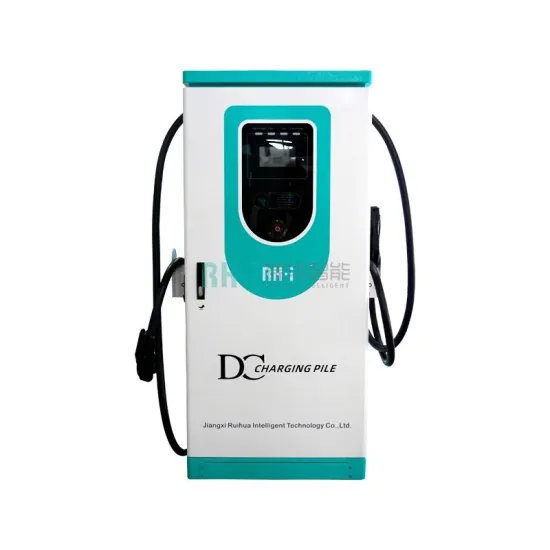

Ruihua High Power DC Fast Charger with CE certificate.



Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.



Product Details:

Multi-standard: CCS1, CCS2

Network or standalone operation

Support smart charging and load balancing

Multiple protection to ensure users’ safety

OCPP 1.6 JSON/ OCPP 2.0.1

( Comply with latest OCPP protocol as Ruihua is the member of OCA )



Power Specification

Input Connection

3-Phase : 3P+N+PE

Input Voltage

400V/AC ±15%

Frequency

50Hz or 60Hz

THDi

≤5%

Power Factor

≥0.98

Output Voltage

150Vdc - 1000Vdc

Max. Output Current

200A( 250A optional)

Rated Power

120kW - 240kW

User Interface & Control

LCD Display

7" Color Touch Screen

LED Indicator

Green/Yellow/Red

Charging Interface

CCS2 Plug( CCS1 Plug / CHAdeMO optional )

Number of Charging Interface

2

Energy Measuring

Embedded meter, with 1% accuracy

Communication

Backend

Ethernet( Bluetooth / Wi-Fi/ 4G Optional )

Charging Protocol

ISO 15118 , DIN 70121

Backend Protocol

OCPP 1.6 JSON ( OCPP2.0.1 )

Protection

Residual Current Device

Yes

Internal Fuse

Yes

Electrical Protection

Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-
tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,
Surge Protection

Environmental

Operating Temperature

-30℃—+55℃

Storage Temperature

-40℃—+75℃

Operating Humidity

Max. 90% RH, Non-Condensing

Operating Altitude

≤ 2000m

IP, IK Level

IP65, IK10

Cooling Method

Independent air duct

Mechanical

Product Dimension

1780*800*950 mm (H*W*D)

Charging Cable Length

5m

Weight

60kw: 390kg;  120kw: 420kg;

Mounting

Free Standing

Certifications

Certifificate

IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24

Safety

CE

EMC

Class B
