Product Description

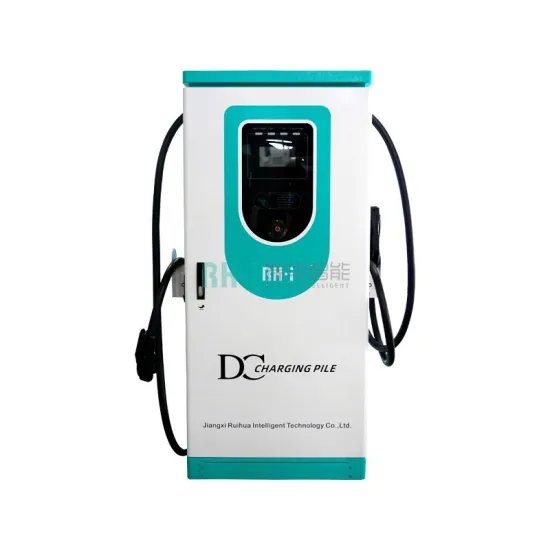

A Level 3 charger, also known as DC fast charger (DCFC), is the most powerful type of EV charger available for public use. Unlike Level 1 and Level 2 chargers, which use alternating current (AC), Level 3 chargers supply direct current (DC) directly to the vehicle's battery. This allows for much faster charging times.
High Power Output: Typically delivers power ranging from 50 kW to over 350 kW, significantly reducing charging time. Some Level 3 chargers can charge an EV to 80% in 15 to 45 minutes, depending on the vehicle and charger.
Voltage and Current: Operates at high voltage levels, often between 400 V to 900 V DC.
Charging Speed: Can add hundreds of miles of range in a short amount of time, making it ideal for long trips or quick stops at charging stations.
Level 3 EV Charger is the cornerstone of sustainable transportation infrastructure. As the world transitions towards electric vehicles (EVs), Ruihua stands at the forefront, offering comprehensive and innovative solutions to power the future.
• Full integration of hardware and software, provide a competitiveness solution
• 4 in 1 E-power
• DC/AC Inverter
• DC/DC Converter
• AC/DC On-Board Charger
Engineered with cutting-edge technology and a commitment to sustainability, our product line is the perfect choice for individuals and businesses alike looking to transition to greener transportation.
Input Connection |
3-Phase : 3P+N+PE |
Input Voltage |
400V/AC ±15% |
Frequency |
50Hz or 60Hz |
THDi |
≤5% |
Power Factor |
≥0.98 |
Output Voltage |
150Vdc - 1000Vdc |
Max. Output Current |
200A( 250A optional) |
Rated Power |
120kW - 240kW |
User Interface & Control |
|
LCD Display |
7" Color Touch Screen |
LED Indicator |
Green/Yellow/Red |
Charging Interface |
CCS2 Plug( CCS1 Plug / CHAdeMO optional ) |
Number of Charging Interface |
2 |
Energy Measuring |
Embedded meter, with 1% accuracy |
Communication |
|
Backend |
Ethernet( Bluetooth / Wi-Fi/ 4G Optional ) |
Charging Protocol |
ISO 15118 , DIN 70121 |
Backend Protocol |
OCPP 1.6 JSON ( OCPP2.0.1 ) |
Protection |
|
Residual Current Device |
Yes |
Internal Fuse |
Yes |
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- |
Environmental |
|
Operating Temperature |
-30℃—+55℃ |
Storage Temperature |
-40℃—+75℃ |
Operating Humidity |
Max. 90% RH, Non-Condensing |
Operating Altitude |
≤ 2000m |
IP, IK Level |
IP65, IK10 |
Cooling Method |
Independent air duct |
Mechanical |
|
Product Dimension |
1780*800*950 mm (H*W*D) |
Charging Cable Length |
5m |
Weight |
60kw: 390kg; 120kw: 420kg; |
Mounting |
Free Standing |
Certifications |
|
Certifificate |
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 |
Safety |
CE |
EMC |
Class B |
Level 3 EV Charger, with powers of 30kw, 60kw, 120kw, 240kw, etc., is suitable for charging new energy electric vehicles with fast charging interfaces. The charging power is large and the speed is fast, so it is generally installed in new energy charging stations, shopping malls, gas stations, and other places, suitable for short-term stay fast charging users, convenient and fast.
Multi-standard: CCS1, CCS2, CHAdeMO
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )
At the heart of Level 3 EV Charger is a commitment to sustainability and innovation. Our charging infrastructure is built with energy efficiency and environmental consciousness in mind, ensuring minimal impact on the planet while maximizing the benefits of electric mobility.
Ruihua Level 3 EV Charger encompass a diverse range of products and services tailored to meet the evolving needs of electric vehicle owners, charging station operators, and municipalities. From state-of-the-art charging stations to advanced management software, Ruihua provides end-to-end solutions that streamline the adoption of electric vehicles.
Our Product Line:
♦ Wall-Mounted Chargers: Designed for convenience and efficiency, our wall-mounted chargers are perfect for home or office use. They offer fast charging capabilities and can be easily installed, ensuring a seamless charging experience.
♦ Portable Chargers: For those on-the-go, our portable chargers provide the flexibility you need. Whether you're traveling or simply need to charge away from home or the office, our portable chargers have got you covered.
♦ Public Charging Stations: We understand that public spaces require robust and reliable charging solutions. Our public charging stations are designed to withstand heavy use while providing efficient and fast charging for all EVs.
Our Level 3 EV Charger are meticulously designed and engineered to deliver reliable and efficient charging experiences. Whether it's fast-charging stations for highways or smart chargers for urban environments, Ruihua offers a versatile lineup to suit various applications.
Join the growing number of individuals and businesses who have made the switch to electric vehicles with EV Power Solutions by Ruihua. Our products are designed to make the transition smooth and hassle-free, allowing you to enjoy the benefits of eco-friendly transportation without compromising on convenience or performance. Start ordering!
♦ Sustainability: At Ruihua, we are committed to reducing carbon emissions and promoting sustainable living. Our products are designed with the environment in mind, helping you make the switch to electric vehicles without compromising on performance or convenience.
♦ Efficiency: Our chargers are engineered for maximum efficiency, ensuring that your EV is charged quickly and safely. Say goodbye to long charging times and hello to a hassle-free experience.
♦ User-Friendly Design: We believe that technology should be accessible and user-friendly. Our chargers are designed with intuitive interfaces, making them easy to use for everyone, regardless of technical expertise.
♦ Reliability: With EV Power Solutions by Ruihua, you can trust that your EV is in good hands. Our products undergo rigorous testing to ensure they meet the highest standards of reliability and safety.
♦ Exceptional Customer Support: Our team of experts is always ready to assist you with any questions or concerns you may have. We pride ourselves on providing exceptional customer support, ensuring that you have a positive experience with our products.
♦ Quality Control: Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers. As a trusted partner in the electric vehicle ecosystem, Ruihua offers comprehensive support services, including installation, maintenance, and network management. Our team of experts is dedicated to ensuring seamless operation and maximum uptime for your charging infrastructure.
With our EV Power Solutions, you can empower your community, reduce emissions, and contribute to a cleaner, greener future. Join us in shaping the landscape of sustainable transportation with Ruihua – Your Partner in EV Power Solutions.
