Product Description
The Level 2 Home EV Charger is usually low, generally between 7 kW and 21 kilowatts. This charging pile is suitable for the daily charging demand of electric vehicles, which can be fully charing for vehicle batteries and meet the travel needs of car owners.
Level 2 chargers typically provide 240V of power, which allows for faster charging compared to a Level 1 (120V) charger. On average, a Level 2 charger can deliver around 25-30 miles of range per hour of charging, depending on the vehicle and the charger’s output (usually between 16 to 80 amps).
These chargers require a dedicated 240V circuit, similar to the kind used for larger home appliances like electric dryers. Professional installation by an electrician is recommended.
Most Level 2 chargers come with the J1772 connector, which is compatible with nearly all electric vehicles in North America. Teslas can also use them with an adapter.
Many Level 2 chargers have smart connectivity, allowing users to monitor and control charging sessions via a mobile app. Features may include scheduling charges to take advantage of off-peak electricity rates and remote monitoring.
Many chargers are designed to be weatherproof and can be installed either indoors (garage) or outdoors (driveway).
The cost of Level 2 chargers can vary, ranging from $300 to $1,200, excluding installation. Installation costs depend on the home’s electrical setup and can add an additional $200 to $1,000.

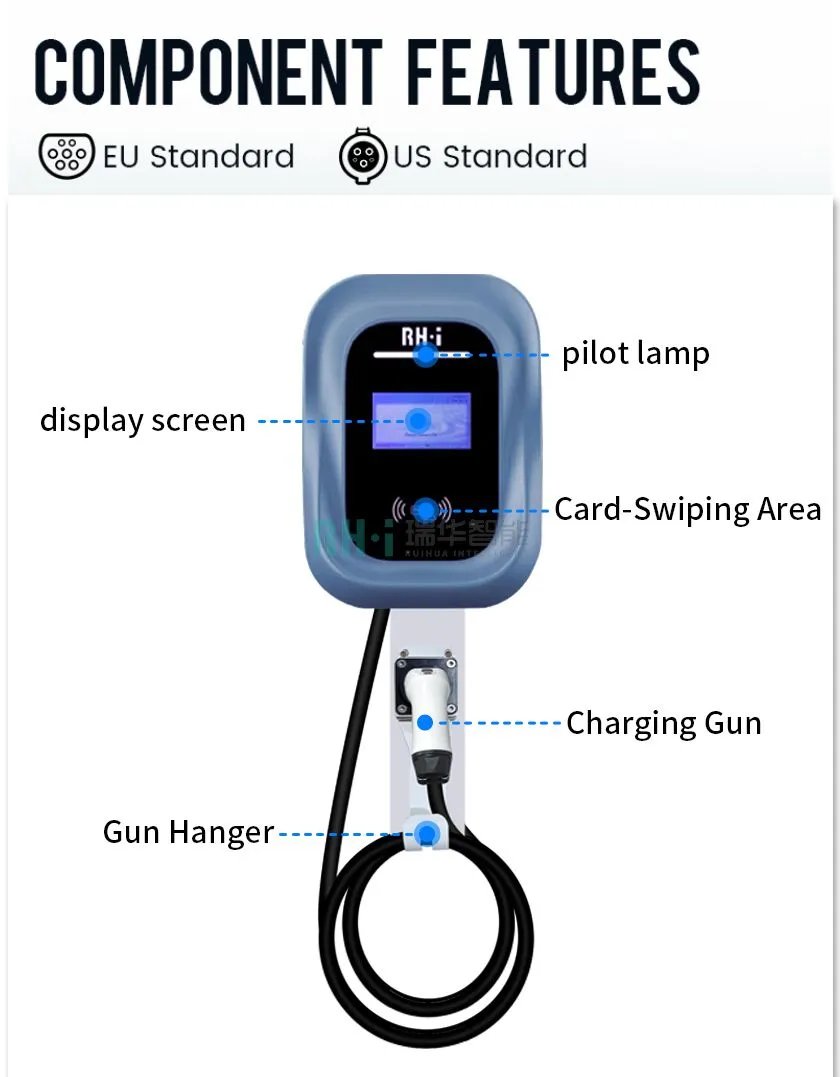

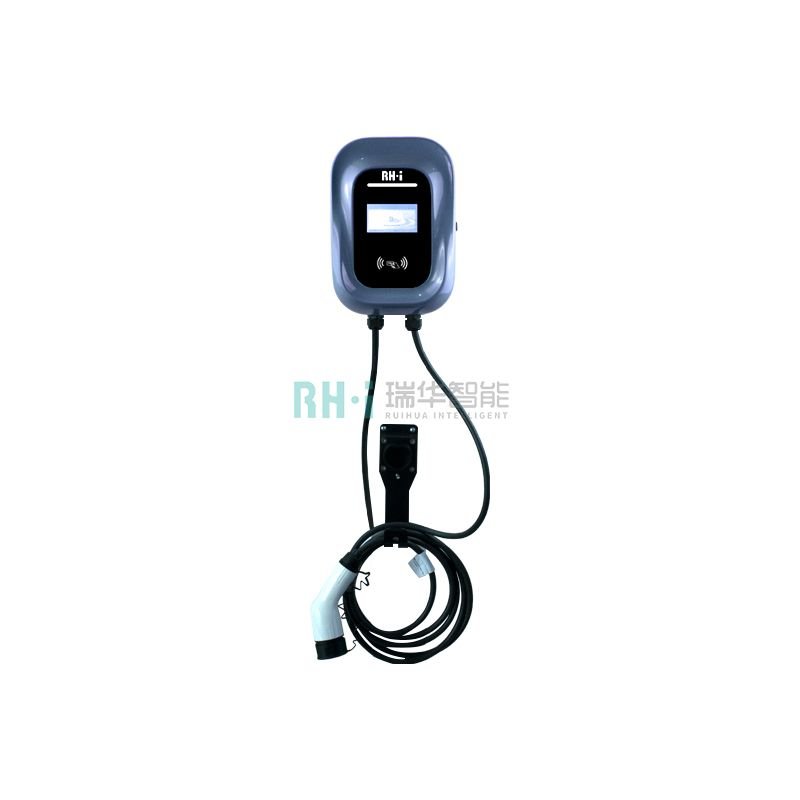

4.3 Inch Lcd Screen with LED Lights Dynamic Load Balance AC EV Charging with OCPP(Power 7kw-22kw)
Parameters:
|
Input & Output |
|||
|
Input voltage / Output voltage |
230V / 400V |
Output current |
32A / 16A |
|
Max power |
7kw/11kw/22kw |
Input frequency |
50-60Hz |
|
Standby power consumption |
<3W |
Charging interface type |
Type 1 / Type 2 |
|
Protection |
|||
|
Over-voltage protection |
yes |
grounding protection |
yes |
|
under-voltage protection |
yes |
over-temperature protection |
yes |
|
overload protection |
yes |
low-temperature protection |
yes |
|
earth leakage protection |
yes |
lightning protection |
yes |
|
Working environment |
|||
|
Applicable scene |
Indoor / Outdoor |
Operating temperature |
-30℃ ~ +55℃ |
|
Height above sea level |
<2000m |
Operating humidity |
5% ~ 95%, non-condensation |
|

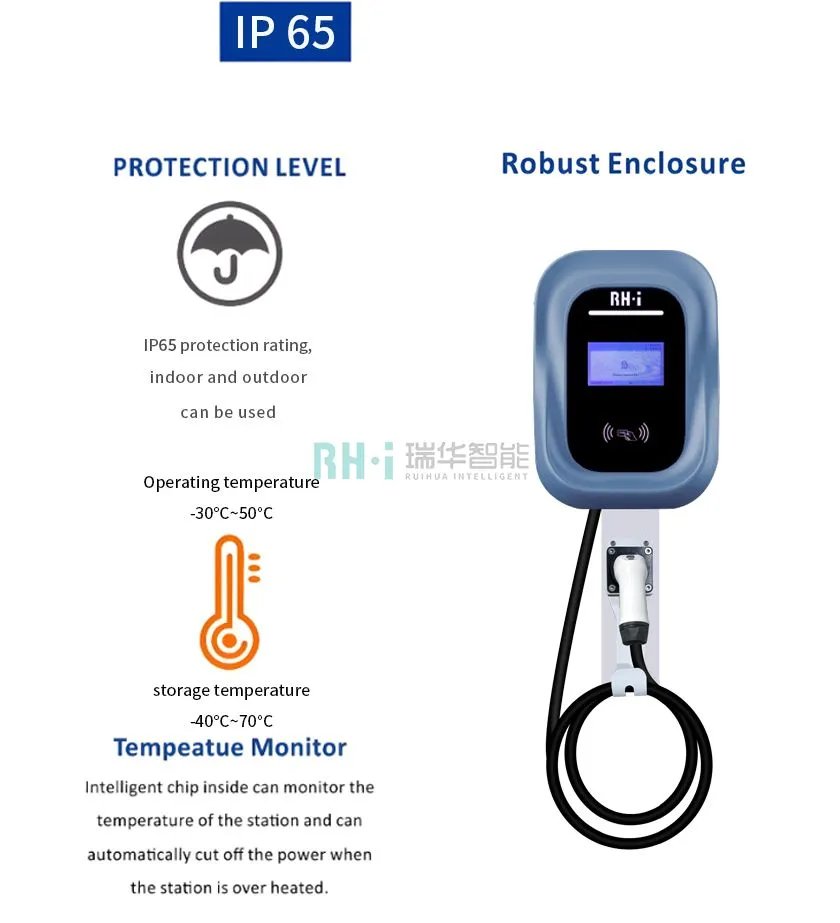

Protection level |
IP65 |
Cooling method |
Natural cooling |
|
MTBF |
100,000 hours |
Special protection |
UV protection design |
|
Appearance structure |
|||
|
Shell material |
Black tempered glass panel, Metal body |
||
|
Equipment dimension |
350*250*122 mm (H*W*D) |
||
|
Installation method |

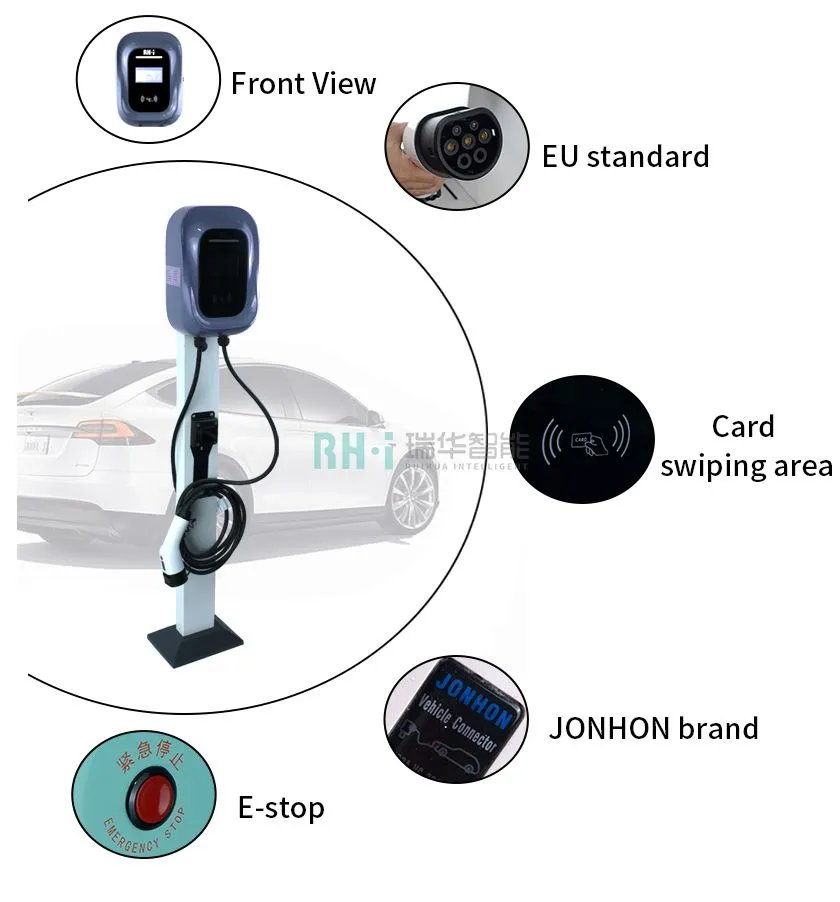

Wall-mounted\floor post |
||
|
Wiring method |
Getting in and going out from the bottom |
||
|
Equipment weight |
6.5 kg/ 7.5 kg/9.5 kg |
Length |
5m |
