Product Description

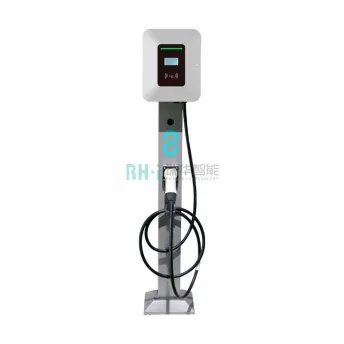

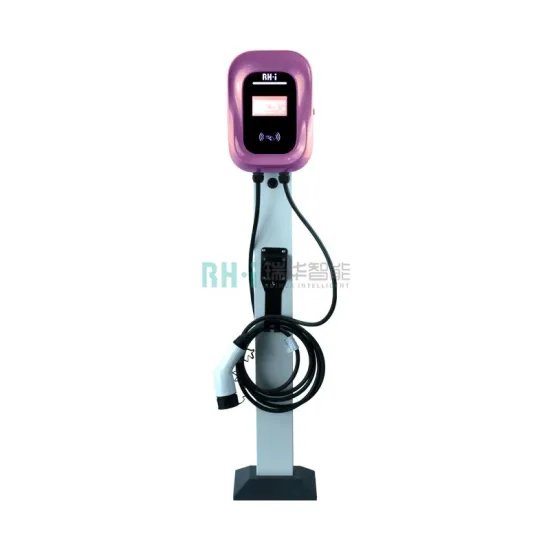

Intelligent Charging Pile is one kind of AC charging station, It can be installed by wallbox or floor-mounted, it is up to customer’s decision.
AC charging stations are used to provide AC charging power for electric passenger vehicles with on-board chargers. Generally, the system is simple, covers a small area, and is easy to install. They can be installed in indoor or outdoor places such as electric vehicle charging stations, public parking lots, residential parking lots, and large shopping malls. They are easy to operate and use, and are important electric vehicle charging facilities.
Our Intelligent Charging Pile combines cutting-edge technology with eco-friendly solutions, offering foreign businesses an opportunity to be at the forefront of the global electric mobility revolution. Contact us today to explore how our innovative charging infrastructure can elevate your commitment to sustainability.
|
Model(CCS,USA,GBT) |
RHAC7K-X, RHAC11K-X, RHAC21K-X |
|
|
Appearance |
||
|
Dimension(W/H/D) |
350*250*122 mm (H*W*D) |
|
|
Installation method |
Wall-mounted |
floor-mounted |
|
Wiring method |
Bottom line in, bottom line out |
|
|
Weight |
6.5 kg |
7.5kg/9.5kg |
|
Number of Outputs |
1 |
|
|
Output type |
IEC 62196-2 Type 1&2, GB/T cable/socket |
|
|
Cable length |
5m |
|
|
Electric Parameter |
||
|
Input voltage |
230Vac±15% |
400Vac±15% |
|
Input frequency |
50/60 Hz |
|
|
Output voltage |
230Vac±15% |
400Vac±15% |
|
Rated power |
7 KW |
11/22KW |
|
Output current |
1-Phase 16/32 A |
3-Phase 16/32 A |
|
Feature Design |
||
|
Network method |
LAN/WIFI/4G(optional) |
|
|
Communication Protocol |
OCPP1.6(optional) |
|
|
LCD Display |
4.3inch screen |
|
|
Language |
English(optional) |
|
|
Start method |
RFID/Button (optional) |
|
|
RCD Type |
6mA DC |
|
|
Environment Parameter |
||
|
Applicable Scene |
Indoor/Outdoor |
|
|
Operating temperature |
-30°C~+50°C |
|
|
Storage temperature |
-40℃~+70℃ |
|
|
Operating humidity |
5%~95% |
|
|
Acoustic noise |
<55dB |
|
|
Maximum altitude |
Up to 2000m |
|
|
Cooling method |
Air cooled |
|
|
Protection level |
IP65,IP10 |
|
|
Safe design |
||
|
Reference standard |
CE & IEC 61851 |
|
|
Protection design |
Overvoltage, undervoltage, short circuit, overload, Earth, leakage, surge, over-temp,lightning |
|
Elevate your business operations with Ruihua's Intelligent Charging Pile, a product that not only promises energy efficiency but also opens doors to new possibilities in the rapidly growing electric vehicle market. Contact us now to discover how our smart charging solutions can drive efficiency and innovation in your enterprise.
• Ruihua's Intelligent Charging Pile maximizes charging efficiency, minimizing downtime and optimizing the usage of available power.
• Enjoy cost-effective charging solutions with our Smart Grid Ev Charging Stations, intelligently managing electricity consumption based on grid conditions.
• The Smart Car Charging Station's intuitive controls and mobile app enable users to personalize their charging experience, making it convenient and user-friendly.
• Whether for personal use or in commercial settings, our solution scales effortlessly to meet the demands of a growing electric vehicle market.
• Contribute to a sustainable future by adopting our Smart Charging Infrastructure Solution, reducing carbon footprints and supporting the global transition to cleaner transportation.
• Quality Assurance: The Intelligent Charging Piles have obtained CE, TUV, ISO and other certificates.
• Energy Electric Vehicle Charging Station:A leading manufacturer of energy metering equipment with a history of more than 16 years, Ruihua providing complete charging solutions for electric vehicle charging stations.
Ruihua's Intelligent Charging Pile is designed for international compatibility, providing a seamless and adaptable charging solution for electric vehicles worldwide. Connect with us to explore how our smart charging infrastructure can enhance your global ventures and contribute to a cleaner, smarter future.
