Product Description

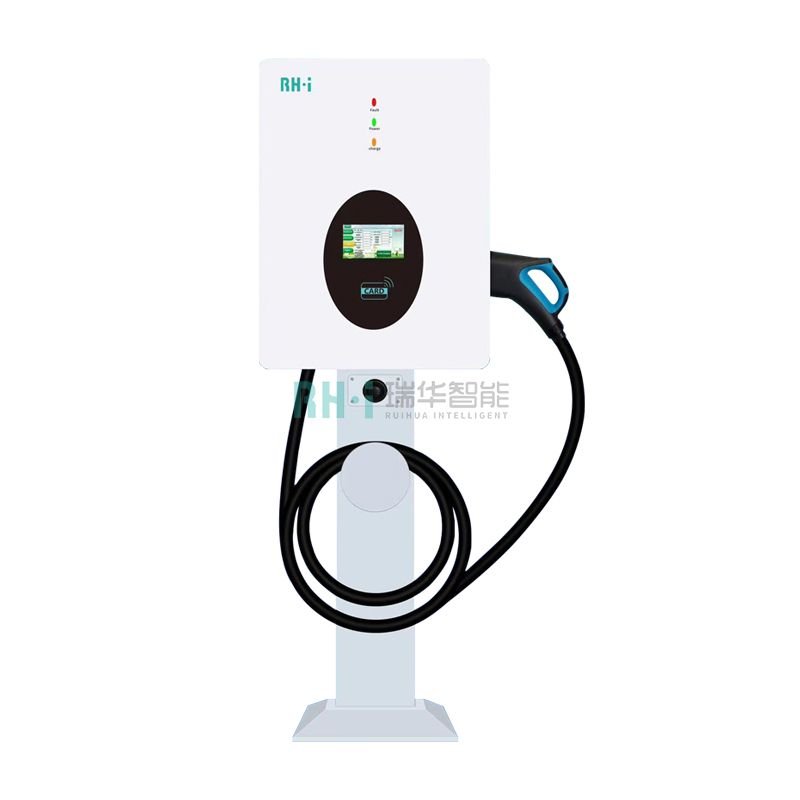

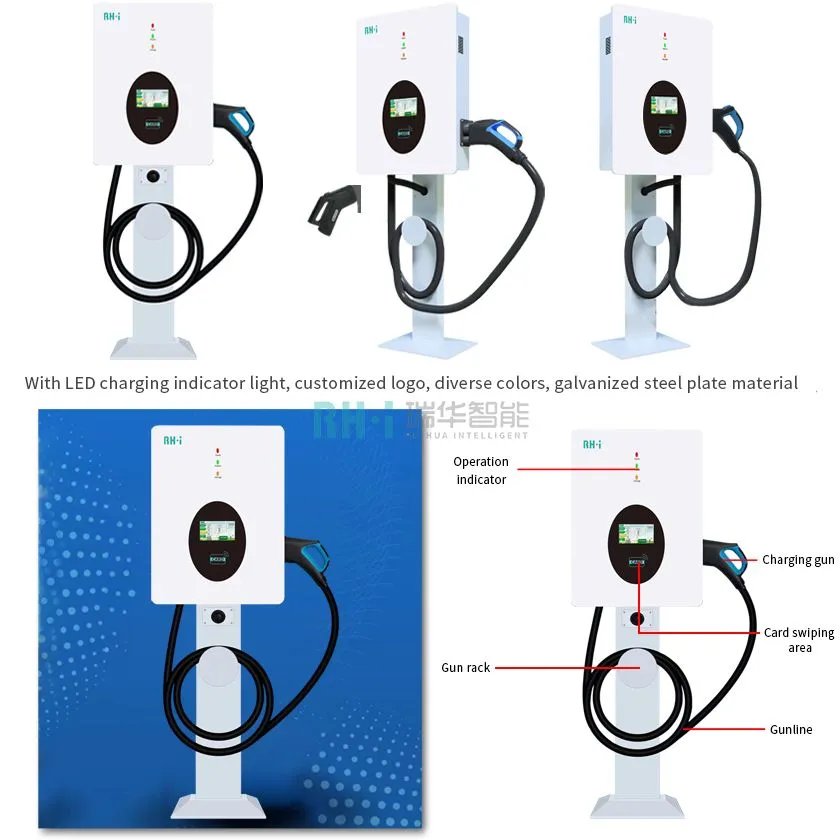

The output DC current of 30kw electric vehicle fast charger is 100A,It can be wall-mounted or floor-stand for installation, 7 inch touch screen, plug and play, it will stop once full charging. It also support OCPP1.6J protocol, Home use or business ev charger, IP54 protection, waterproof and dust-proof.
Model: RHDC30K-L-EU/ RHDC40K-L-EU
Feature:
1.Simple and Clear Interface
2.Fashion design structure
3.Easier to install and use
4.Good vehicle compatibility
Parameters:
| Parameter | Model | RHDC30K-L-EU | RHDC40K-L-EU | |
| Input | Power Supply | 3P+N+PE | ||
| Input Voltage | 380V/AC±15% | |||
| Input Frequency | 50/60 Hz | |||
| Input PF | ≥0.98 | |||
| Total Harmonics of Input Current | ≤5%（50%～100% loading） | |||
| Output | Rated Power | 30kW | 40kW | |
| Rated Current | 30A | 40A | ||
| Rated Voltage | 1000V/DC | |||
| Voltage Range | 150-1000V/DC | |||
| Constant Power Output Voltage Range | 300-1000V/DC | |||
| Maximum Current | 100A | 133A | ||
| Current Range | 5-100A | 5-133A | ||
| Maximum Efficiency | ≥95%（100% loading） | |||
| Steady Current Accuracy | ≤±1% | |||
| Steady Voltage Accuracy | ≤±0.5% | |||
| User Interface | LED Indicator | LED（Green 、 Yellow、 Red） | ||
| LCD Display | 7"or 10.1"Touch LCD Screen | |||
| Start Mode | POS,RFID Reader,Plug&Play,APP | |||
| Cable Length | 5m | |||
| Number of Gun | Single | |||
| Communication | LAN | Yes | ||
| 4G | Yes | |||
| Protocol | OCPP | OCPP1.6J | ||

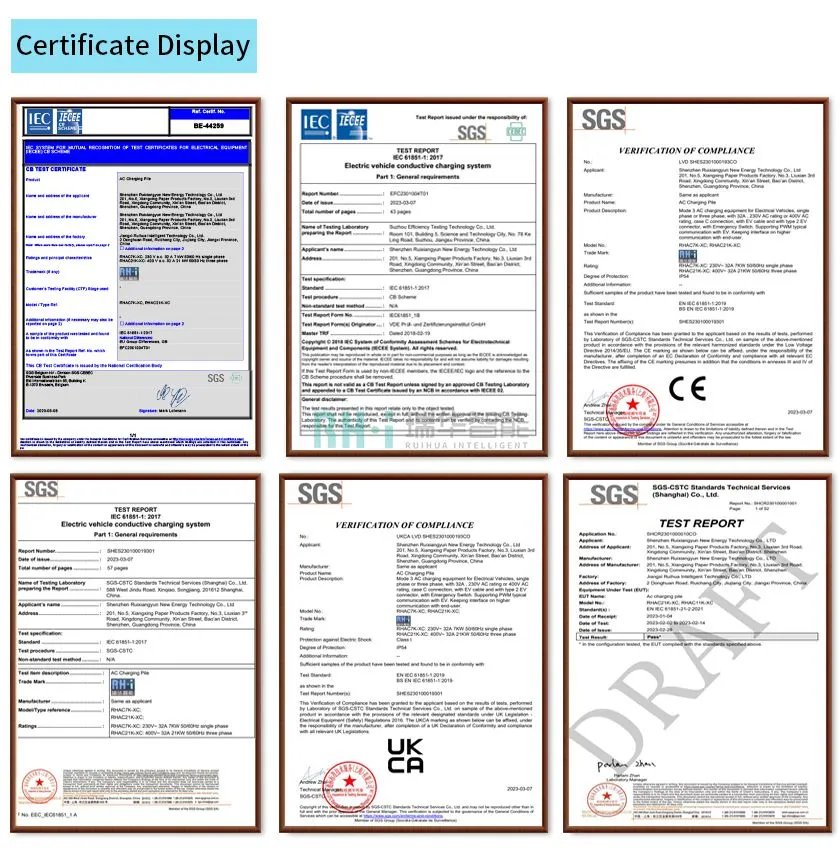

| Certification Standard | IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014，EN 61851-21-1:2018 | |||
| Safety | Short Circuit Protection | Yes | ||
| Over Load Protection | Yes | |||
| Over Temperature Protection | Yes | |||
| Leakage Protection | Yes | |||
| Over and Under Input Voltage Protection | Yes | |||
| Over and Under Output Voltage Protection | Yes | |||
| Over-current Protection | Yes | |||
| Environment | Work Temperature | -20℃～+55℃ | ||
| Storage Temperature | -40℃～+85℃ | |||
| Relative Humidity | ≤95% Dew Free | |||
| Work Altitude | ≤2000m | |||
| Environmental Conditions | Indoor or Outdoor | |||
| Others | Cooling Method | Fan Cooling | ||
| Noise | ≤65dB | |||
| Ingress Protection | IP54 | |||
| Installation | Wall-mount or Floor-stand | |||
| Product Dimension | 780*580*205.5 mm (H*W*D) | |||
| Net Weight | 67KG | |||
| External Package | Wooden case | |||

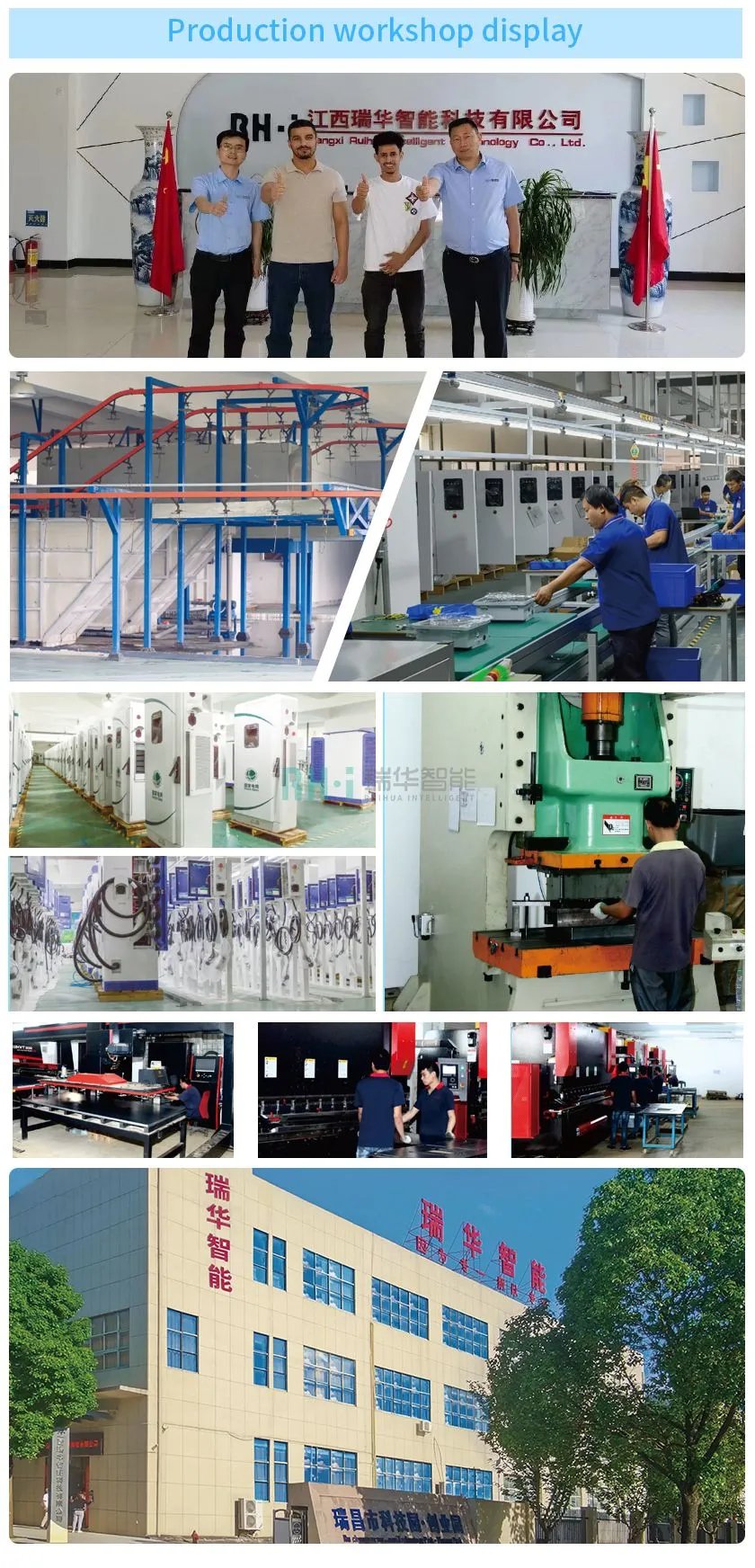

Ruihua invest alot to import Large-scale Automatic Production Line,Pneumatic Punching, HRT High-speed Hydraulic Turret-Type Punch Press, Automatic Welding Robot and German Trumpf Large Fiber Laser Cutting Machine,which Both the copper plate and aluminum plate are available for cutting.
We also present 2pcs cards for start mode, to guard against burglary.
Emergency Stop Button - When emergencies occur, You can quickly press this button for protection.
Metal plate housing design- more durable,Impact resistance, not easy to age
