Product Description
As the production and sales of new energy vehicles continue to increase, the charging pile industry has begun to develop rapidly. Different from traditional fuel, the hazard and risk of electrical energy are small, so it can meet the owners to make up the energy in different scenarios, the owner can choose to make up the energy in the community at their free time.
Compared with the fast DC charging pile, although The AC charging pile is slightly slower, its advantages cannot be ignored. AC charging piles only require a single -phase 220V voltage, and common electricity scenarios can support it, no need to expand or increase capacity. According to data, Compared with the same period last year, the exchange charging pile increased by 239,000 units, and the growth rate has approached 50%.

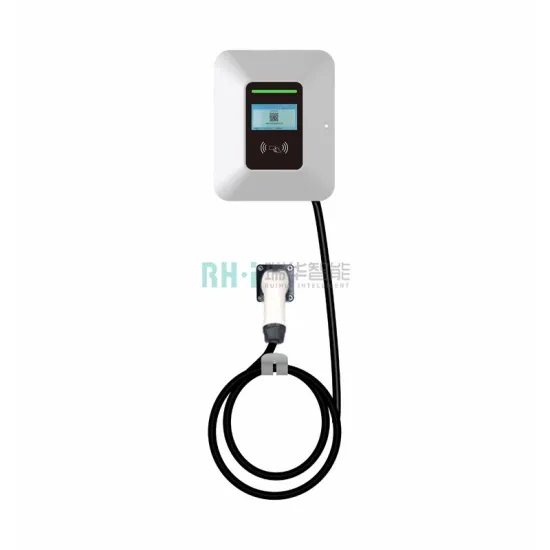

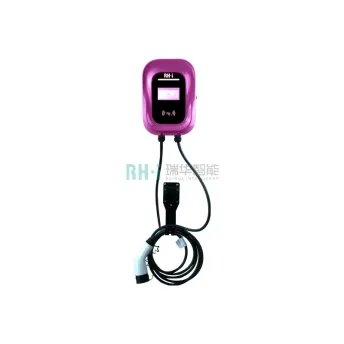

Ruihua 7kw/11kw/22kw AC Smart Home Wallbox Charger:
It’s design outside is simple and fashion, waterproof design, easy operation, can be installed or suspended on fixed facilities such as walls, backboards, light rods...etc, It is suitable for households, companies, public parking lots, residential district parking lots, large commercial buildings, industrial parks or cities Public charging stations and other places.

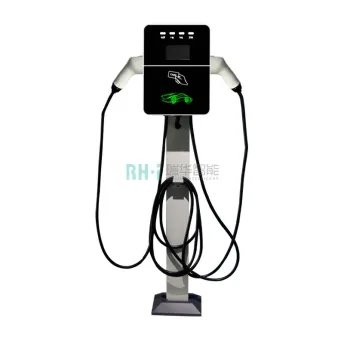

Our 7kw intelligent wall mounted charger also can be stand on pole-mounted on floor with steel post, It was made by adopting high-quality materials and accessories, choose high-quality electrical components and protection devices to ensure that the safety performance, to meet CE & UL standards and the user’s needs.
Specification:
Model: 7kw/11kw/22kw AC Smart Home Wallbox Charger
Power: 7kw/11kw/22kw
Size:256*320*131mm(W*H*D)
Weight: 6.5KG(Wallbox),7.0KG(Wallbox),7.5KG(Wallbox)
Installation: wall-mounted or column stand
Electricity: Work Voltage: AC 230V±15%, 400V AC±15%
Input mode: Single phase or 3 phases
Output Voltage:230V AC, 400V AC
Rate current:32A
Work temperature:-20℃～+50℃
Safe: IP54
Suitable: for 99% different brand Ev
Features: Small size, high-safety performance, Easy installation, Simple use
The scope of application is wide, credit card, 4G Internet...function
Protection:surge protection, short circuit protection, over current protection, over temperature protection, over/under load protection,leakage protection...etc functions
Connection:support OCPP1.6J
Start Mode:APP, RIFD Card
