Product Description

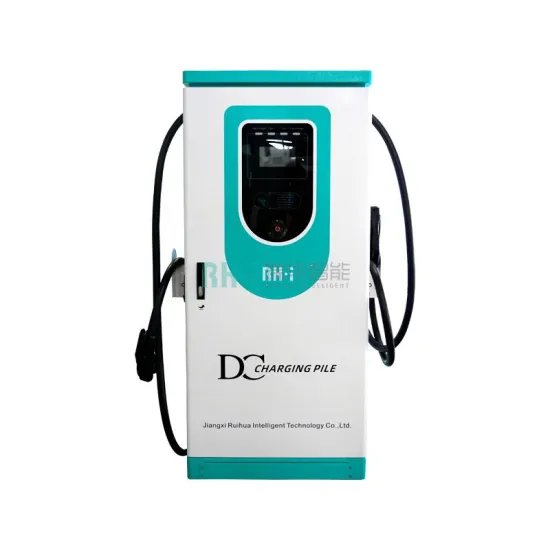

Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.
R & D and manufacturing, wall-mounted single gun DC 20KW.30KW.40KW series product capabilities;
R & D and manufacturing, landing single gun DC 20KW. 30KW. 40KW. Series product capabilities;
R & D and manufacturing, landing double gun DC 40KW. 60KW. 80KW. 120KW. 160KW. 180KW. 360kW series product capabilities;
R & D and manufacturing, 240KW one for four, 360KW one for six, 480KW one for eight, 600KW one for ten, flexible charging pile series product capabilities;R & D and manufacturing, European standard,
Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.
Product Details:
Multi-standard: CCS1, CCS2, CHAdeMO
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )
Power Specification
|
Input Connection |
3-Phase : 3P+N+PE |
|
Input Voltage |
400V/AC ±15% |
|
Frequency |
50Hz or 60Hz |
|
THDi |
≤5% |
|
Power Factor |
≥0.98 |
|
Output Voltage |
150Vdc - 1000Vdc |
|
Max. Output Current |
200A（ 250A optional） |
|
Rated Power |
120kW - 240kW |
|
User Interface & Control |
|
|
LCD Display |
7" Color Touch Screen |
|
LED Indicator |
Green/Yellow/Red |
|
Charging Interface |
CCS2 Plug( CCS1 Plug / CHAdeMO optional ) |
|
Number of Charging Interface |
2 |
|
Energy Measuring |
Embedded meter, with 1% accuracy |
|
Communication |
|
|
Backend |
Ethernet( Bluetooth / Wi-Fi/ 4G Optional ) |
|
Charging Protocol |
ISO 15118 , DIN 70121 |
|
Backend Protocol |
OCPP 1.6 JSON ( OCPP2.0.1 ) |
|
Protection |
|
|
Residual Current Device |
Yes |
|
Internal Fuse |
Yes |
|
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- |
|
Environmental |
|
|
Operating Temperature |
-30℃—+55℃ |
|
Storage Temperature |
-40℃—+75℃ |
|
Operating Humidity |
Max. 90% RH, Non-Condensing |
|
Operating Altitude |
≤ 2000m |
|
IP, IK Level |
IP65, IK10 |
|
Cooling Method |
Independent air duct |
|
Mechanical |
|
|
Product Dimension |
1780*800*950 mm (H*W*D) |
|
Charging Cable Length |
5m |
|
Weight |
60kw: 390kg; 120kw: 420kg; |
|
Mounting |
Free Standing |
|
Certifications |
|
|
Certifificate |
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 |
|
Safety |
CE |
|
EMC |
Class B |
