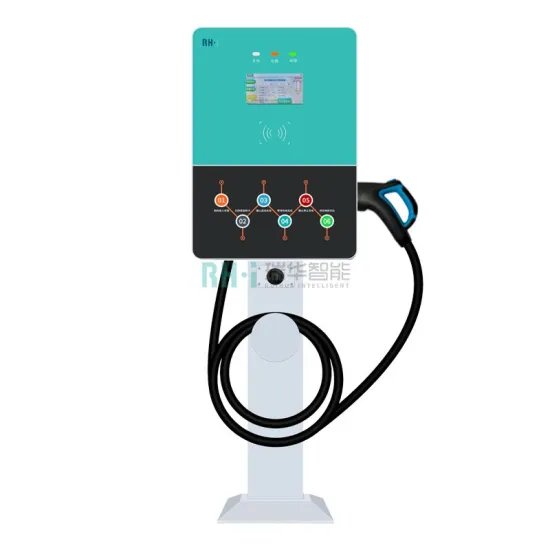

40kW DC Charger for Electric Vehicles

Direct current (DC) fast charging is a method of rapidly replenishing an electric vehicle’s battery. Unlike slower AC charging, DC charging bypasses the onboard charger of an EV, delivering power directly to the battery. Introducing the Ruihua 40kW DC Charger: Redefining Efficient and Versatile Charging. Experience the future of electric vehicle charging with the 40kW DC Fast Charger, where efficiency, versatility, and innovation converge for an unparalleled charging experience.

40kW DC charger is the top choice for charging electric vehicles today.  Revolutionize your electric vehicle charging experience with the 40kW DC Fast Charger, engineered with cutting-edge technology and user-centric design for seamless operation and maximum convenience. It is designed for quick charging in both commercial and private locations, such as retail and mall parking spaces, fleet charging stations, highway service areas, workplaces, residences, etc.

Ruihua 40kW DC Charger is designed for diverse charging locations, including urban public charging stations, parking lots, shopping malls, inter-city highways, and power business places. It caters to a wide variety of vehicles, such as buses, taxis, official vehicles, sanitation vehicles, logistics vehicles, private cars, and commuter cars. The charging station is especially suitable for fast deployment in limited spaces, making it an efficient solution for delivering rapid DC charging in various settings.

The era of electric vehicles (EVs) is here, and with it comes the need for efficient charging solutions. DC EV Chargers, particularly those of 20KW, 30KW, and 40KW capacities, are integral players in this landscape.  We support EV charging stations with different power according to customer requirements. View all car electric chargers.

40kW DC Charger Features:

• CCS2 Connector

• Integrated RCBO Isolation

• Tethered Charger

• 2 Year Warranty

• RFID Control

• Rapid Charging

40kW DC Charger Specifications:

• 7 Inch LCD Screen

• Ethernet / WIFI Connectivity

• Outlet type: CCS2

• IP54

• Environment Temp: -25 to +50 degrees C

• Hummidity: 5-95% non-condensing

Inputs & Outputs

• Input Amps: 125A Three Phase

• Input Voltage: 230~415v AC

• Input Frequency: 50/60HZ

• DC outlet type: CCS2

• Output Voltage: 150-1000v DC

• Max. output power: 40kW

• Max. output power current: 125A DC

• Voltage accuracy: <+/-0.5%

• Current accuracy: <+/-1%

• Ripple coefficient: RMS: +/- 0.5%; Peak: <+/-1%

• Meeting accuracy: 0.5%

• Efficiency: >95.2%

• Cable length: 5m

Protection

• Over voltage protection

• Under voltage protection

• Over load protection

• Short circuit protection

• Earth Leakage protection

• Over-temp protection

• Surge protection

Weights & Dimensions

• 580 x 780 x 206mm (W/H/D)

• 70KG

Optional Accessories

• Floor Stand

• Ground Mount

• Signage

• Additional RFID cards

Quality Control

Get in touch today for a quote, also talk to us if you are interested generating revenue by offering semi public charging.

40kW DC Charger Details:

The 40KW DC EV charger is ideal for public charging stations, high traffic areas, and commercial fleets with a variety of EVs. It can also be beneficial for users with multiple electric vehicles or high-capacity EVs that require substantial charging power.

40kW DC Charger Uses:

• Workplace:  Use at work to keep your electric vehicles charged and operating.
• Business or shops: Generate extra revenue by enabling paid charging at your business, keep shoppers around for longer.
• Apartments: Allow your tenants to charge electric vehicles, connect to an OCPP platform and track the costs for billing.

40kW DC Charger Benefits:

● The 7-inch display and unique UI offer good user display requirements for charging.

● The lit LED beacons allow users to quickly identify the current charging status.

● Mobile app integration provides users remote operation and real-time reminders.

● Its metal casing and semi-gross coating ensure the long-term outdoor use.

● OCPP 1.6 compliance enables connection to the global EV charging platform.

● Wall-mounted and pedestal-mounted optional installation methods.

● CCS, CHAdeMO dual-connector output to charge all kinds EVs.

● Remote upgrade and local upgrade the charger software locally or remotely.

Customise your DC charger to fit the needs of your application. From payment to mounting options, we've got you covered. If you want to install residential electric vehicle chargepoints, our specialist team can help you every step of the way.

FAQ :

1:Why choose us?

A:We are professional EV charger manufacturer. We own mastered core R&D capabilities such as intelligent control, Internet of Things, rough data, artificial intelligence, and has been recognized by national high-tech enterprises and has more than 100 patented technologies.

2: How can we guarantee quality?

A: Always a pre-production sample before mass production; All major components are tested before assembly and each charger is fully tested before shipped.

3: How long to fully charge a car?

A: To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.

4:Can I order some samples? How long will ship to my address?

A:Yes, sample available, and usually 7-10 days to production and 7-10 days to express.

5.Can I custom our logo, package and cable length?

A: Yes dear, we support custom printing your Logo, package,plug and cable. We support GB/T, US, EU, JPN Standard.

6.Can I have a discount price and better service?

A: Of course , for first cooperation and our VIP customers, we all have different plan of discount. And please don't worry, we always provide best service of every customer friend. Please to contact us ! Welcome Contact Now!
