Product Description
Ruihua, the preferred energy supplier for EV charging solutions, proudly introduces the Ground Mounted DC Charger—a testament to our commitment to innovation, sustainability, and driving the future of electric mobility. As a trusted electric vehicle charging pile manufacturer, we have meticulously designed this charger to meet the diverse needs of modern electric transportation.
Ground Mounted Dc Chargers are commonly used in public charging networks, especially along highways or other high-traffic areas where fast charging is essential for long-distance travel. They are designed for use with electric vehicles that have the capability to accept high-power DC charging, such as many modern electric cars and buses.

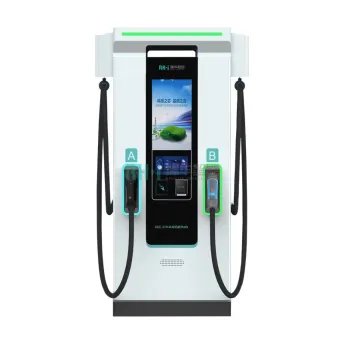

Experience the pinnacle of charging efficiency with our Ground Mounted DC Charger. As a dual EV charger, it caters to multiple vehicles simultaneously, ensuring a seamless and convenient charging experience for EV users. Equipped with advanced technology, this Ground Mounted DC Charger is set to revolutionize the way we power electric vehicles.
It's worth noting that not all electric vehicles are capable of accepting high-power DC charging, so it's important to check your vehicle's specifications before using a 240 kW DC charging station. and Ground Mounted Dc Charger can consume 40 kWh of electricity in ten minutes at full load.
The DC fast charging speed of 120 kilowatts is twice that of 60 kilowatts, and during the charging process, the former charges twice as much electricity per unit time as the latter.

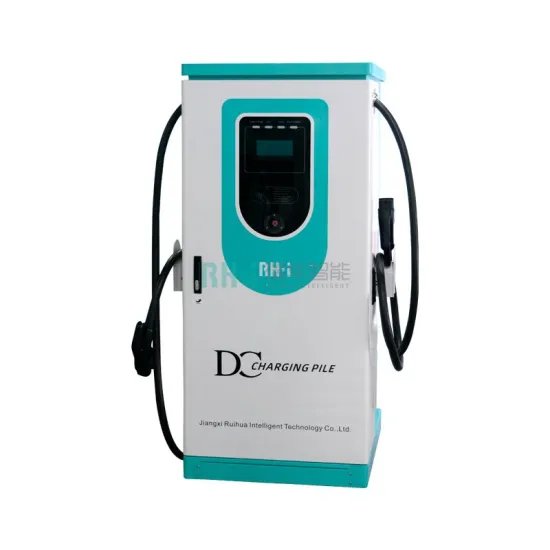

DC fast charging pile, with powers of 30kw, 60kw, 120kw, 160kw, etc., is suitable for charging new energy electric vehicles with fast charging interfaces. The charging power is large and the speed is fast, so it is generally installed in new energy charging stations, shopping malls, gas stations, and other places, suitable for short-term stay fast charging users, convenient and fast.
Multi-standard: CCS1, CCS2, CHAdeMO
Network or standalone operation
Support smart charging and load balancing
Multiple protection to ensure users’ safety
OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )
|
Input Connection |
3-Phase : 3P+N+PE |
|
Input Voltage |
400V/AC ±15% |
|
Frequency |
50Hz or 60Hz |
|
THDi |
≤5% |
|
Power Factor |
≥0.98 |
|
Output Voltage |
150Vdc - 1000Vdc |
|
Max. Output Current |
200A（ 250A optional） |
|
Rated Power |
120kW - 240kW |
|
User Interface & Control |
|
|
LCD Display |
7" Color Touch Screen |
|
LED Indicator |
Green/Yellow/Red |
|
Charging Interface |
CCS2 Plug( CCS1 Plug / CHAdeMO optional ) |
|
Number of Charging Interface |
2 |
|
Energy Measuring |
Embedded meter, with 1% accuracy |
|
Communication |
|
|
Backend |
Ethernet( Bluetooth / Wi-Fi/ 4G Optional ) |
|
Charging Protocol |
ISO 15118 , DIN 70121 |
|
Backend Protocol |
OCPP 1.6 JSON ( OCPP2.0.1 ) |
|
Protection |
|
|
Residual Current Device |
Yes |
|
Internal Fuse |
Yes |
|
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- |
|
Environmental |
|
|
Operating Temperature |
-30℃—+55℃ |
|
Storage Temperature |
-40℃—+75℃ |
|
Operating Humidity |
Max. 90% RH, Non-Condensing |
|
Operating Altitude |
≤ 2000m |
|
IP, IK Level |
IP65, IK10 |
|
Cooling Method |
Independent air duct |
|
Mechanical |
|
|
Product Dimension |
1780*800*950 mm (H*W*D) |
|
Charging Cable Length |
5m |
|
Weight |
60kw: 390kg; 120kw: 420kg; |
|
Mounting |
Free Standing |
|
Certifications |
|
|
Certifificate |
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 |
|
Safety |
CE |
|
EMC |
Class B |
♦DC Electric Car Charging Stations: Designed exclusively for DC charging, our ground-mounted station delivers rapid and efficient charging, minimizing downtime and maximizing the road time for electric vehicles.
♦Bidirectional EV Charging Station: Our innovation doesn't stop at charging. This charger supports bidirectional charging, enabling energy flow back to the grid or to other energy consumers, contributing to a smarter and more balanced energy ecosystem.
♦3 Phase EV Charger: With a 3-phase power supply, our Ground Mounted DC Charger offers faster charging speeds, making it an ideal solution for commercial and high-demand charging scenarios.
♦Seamless Integration: As car charging station manufacturers, we understand the importance of seamless integration. This charger seamlessly blends into diverse settings, whether it's public charging points, commercial complexes, or urban infrastructure.
♦Reliable and Future-Ready: Ruihua's legacy as an electric vehicle charging pile manufacturer ensures that our products are built to last. The Ground Mounted DC Charger is not only reliable but also designed with future technological advancements in mind.
As the best energy supplier for EV charging, Ruihua invites you to explore the future of electric mobility with us. Witness the evolution of electric vehicle charging stations and join us in shaping a world where innovation meets environmental responsibility. Contact us today to learn how our Ground Mounted DC Charger can be tailored to your specific charging needs and contribute to a brighter future.
=
At Ruihua, we are more than just electric vehicle charging pile manufacturers; we are drivers of change. Our Ground Mounted DC Charger stands as a testament to our dedication to providing best-in-class solutions for EV charging. By choosing our charger, you become a part of the movement towards cleaner, more sustainable transportation.
