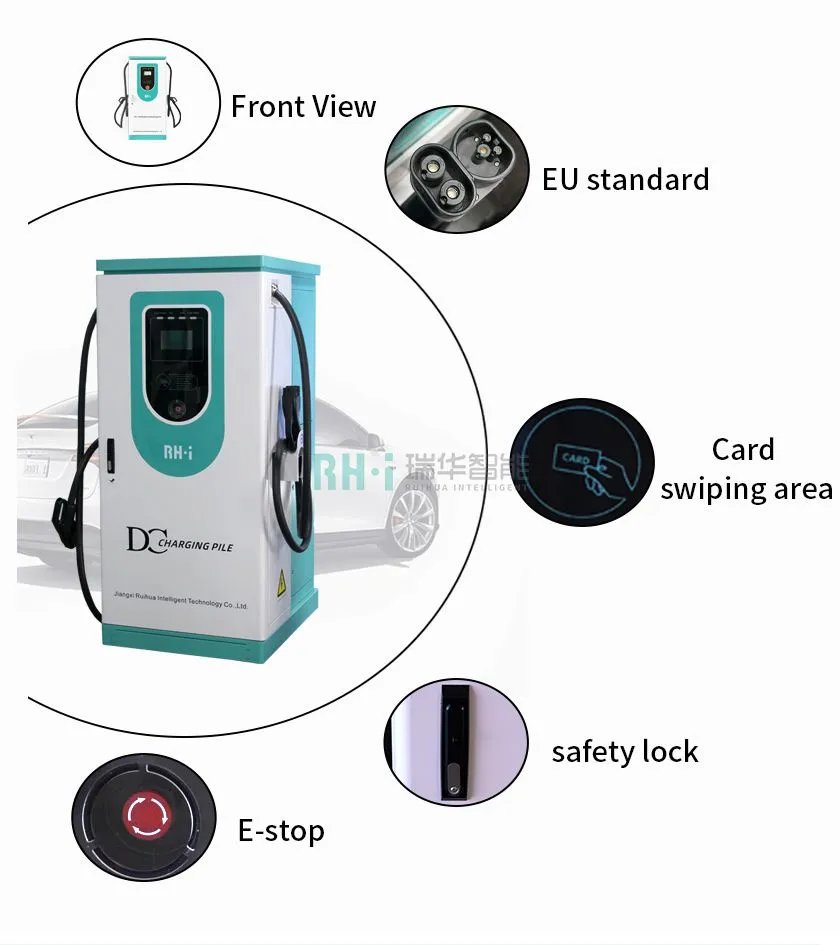

Product Description

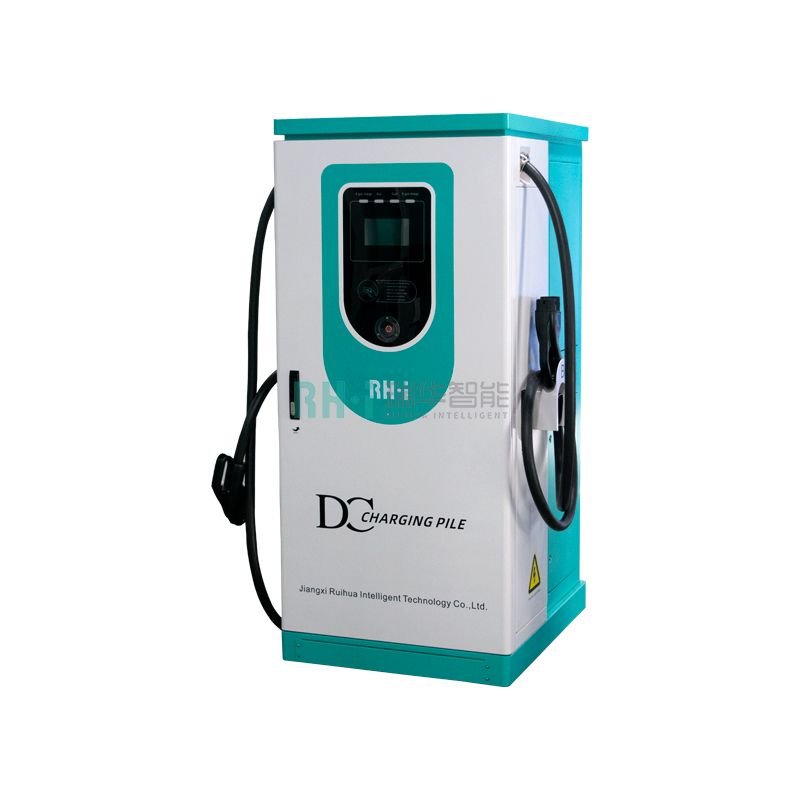

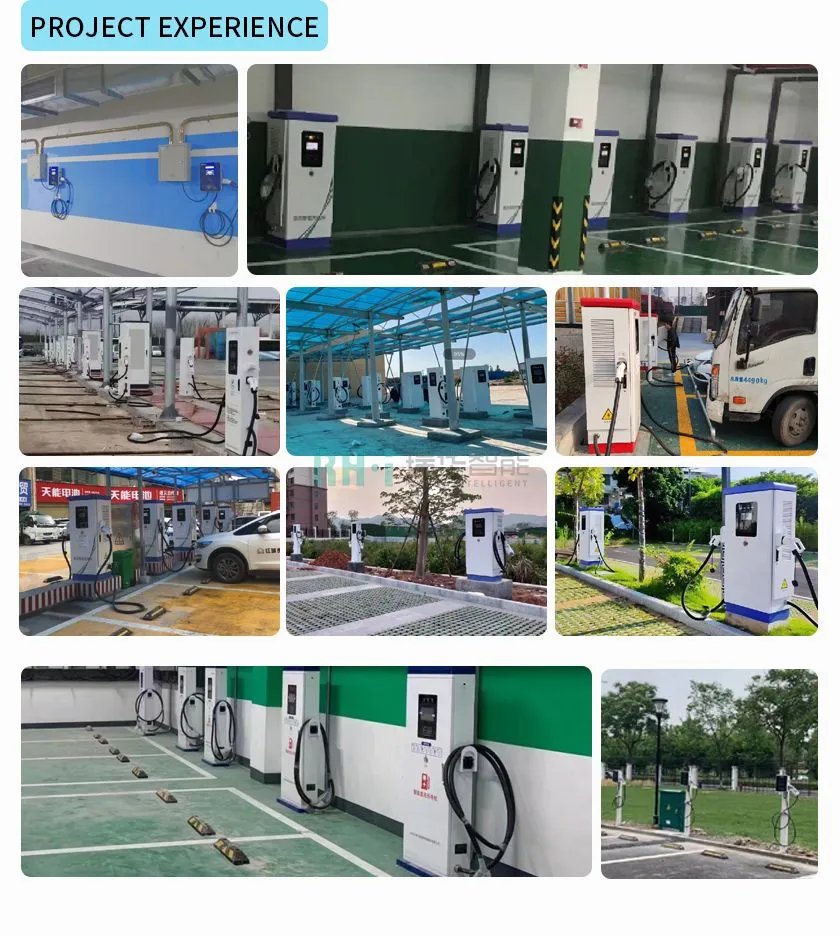

80kw Dc Ev Charger is the electric vehicle charging power supply used for the distributed charging network of electric vehicles, It can quickly and effectively deploy the charging network, providing high-power fast charging services for electric vehicles. The high-power outdoor integrated DC charger consists of a charging connection device, a rectifier module, and a charging control and billing system. Each rectifier cabinet is equipped with 10pcs of 15kW high-voltage DC charging modules, which’s suitable for the operation and use of urban transportation charging stations, highway charging stations, enterprise dedicated parking lots, and other places.
The 80kw DC Ev charging station can achieve functions, such as IC card management, LCD display, charging and billing, charging management, remote communication...etc. It transmits operating data (including billing information) to the server backend. Through the backend master station, the administrator can monitor the operation of the charging station in real-time, providing guarantee for the good operation of the system.
Ruihua is the largest Ev charger Manufacturer, 60KW,120KW 160KW Fast Floor Mounted DC EV Charger Electric Vehicle Charging Station
Our service:
1. OEM/ODM acceptable
2. Warranty: 3 years
3. 10-15 days lead time
4. 100% Inspection before delivery

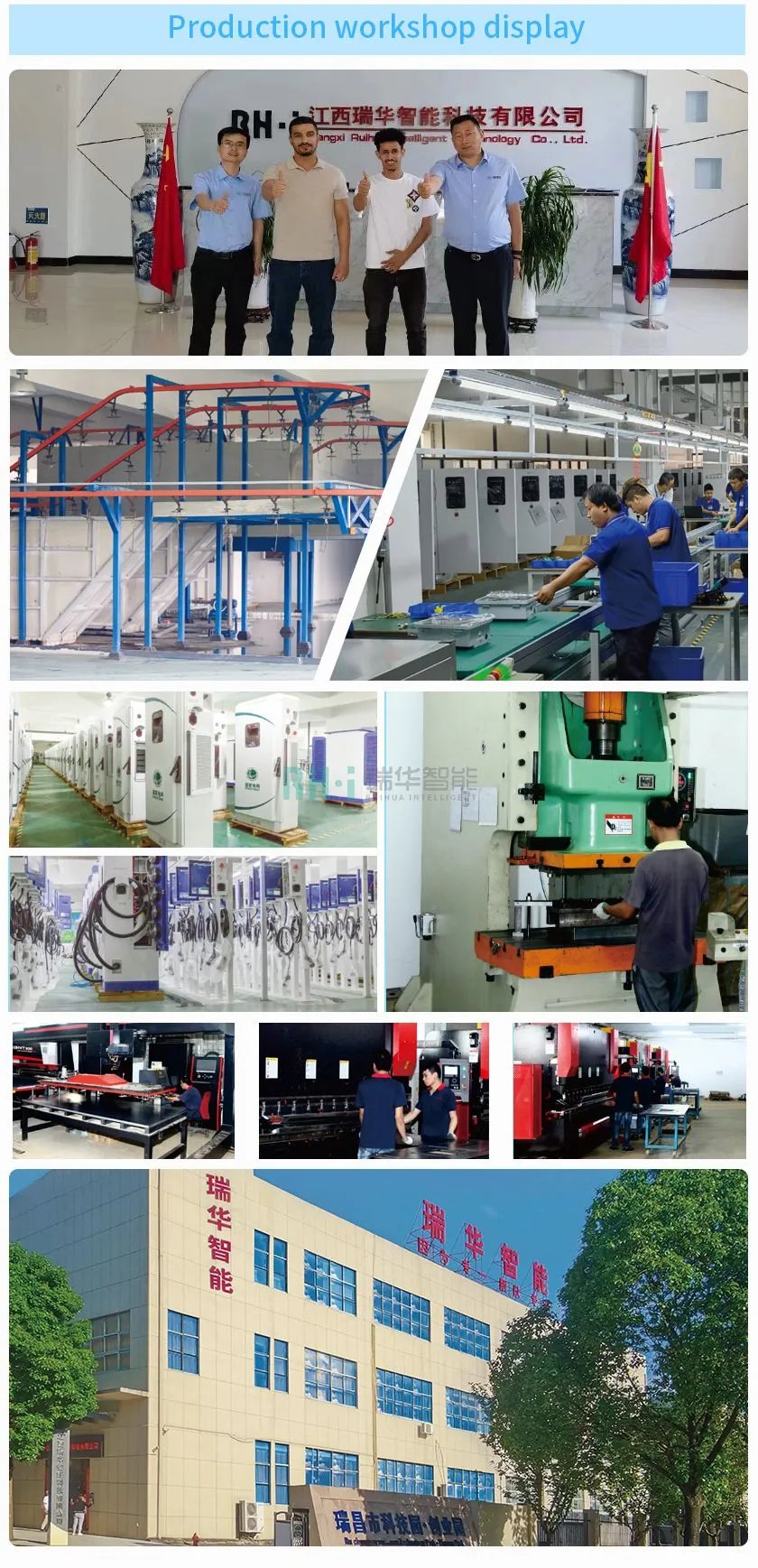

5. We are the largest EV charger manufacuturer over 16 years. Take up 80,000m² production base, 400+ workers, dozens of patents.

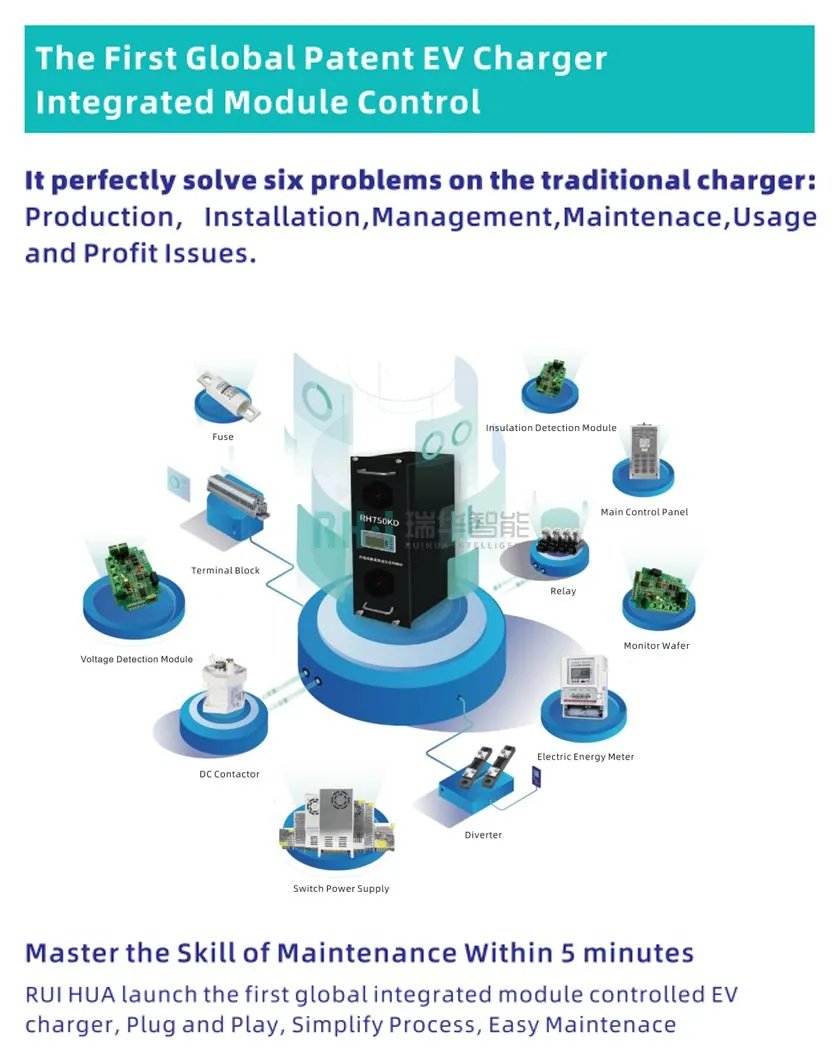

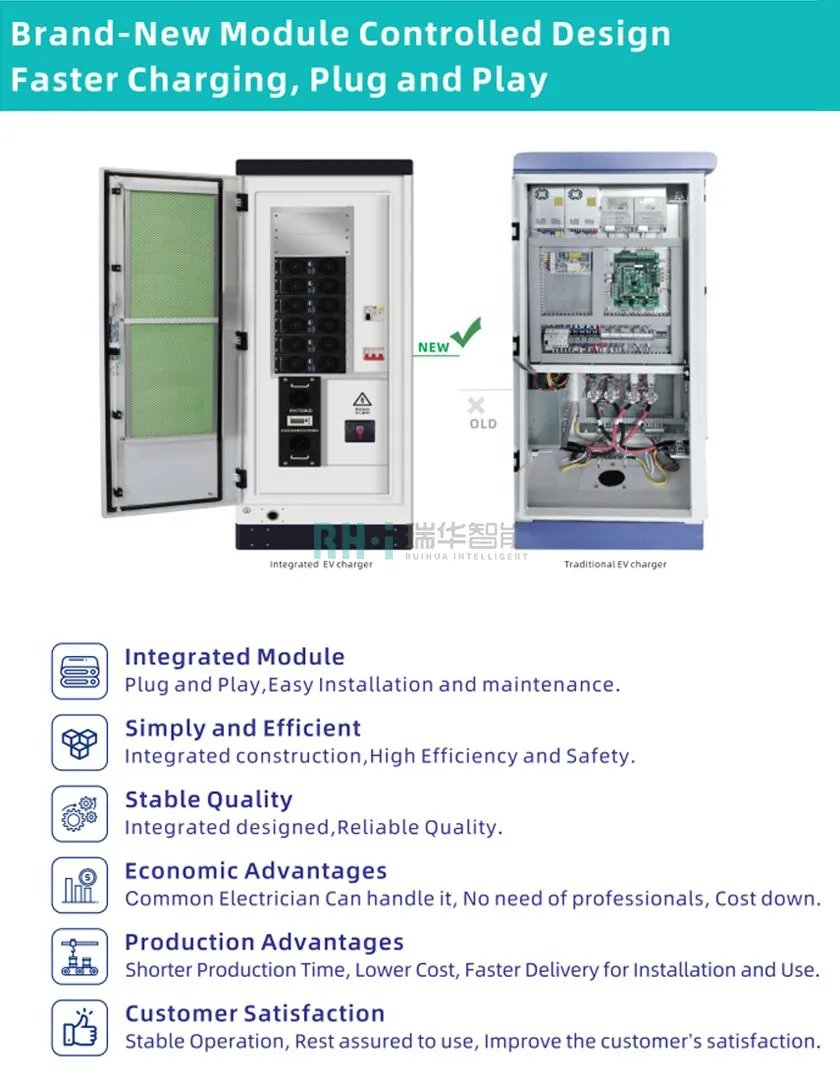

Advantage: Inside is Integration Charging Control Module – The first global patent Ev charger control module.
It perfectly solve six problems compared to the traditional charger:
*Production faster
*Easy Installation
*Simple Management
*Easy Maintenance
*Easy operation for use
*Profit issue, the lowest repairing cost after 5 years
Parameters:
|
Power supply |
3P+N+PE |
|
Rated Voltage |
400VAC±15%(50/60Hz) |
|
THDI |
≤5% |
|
Efficiency |
≥95% |
|
Power Factor |
≥0.98 |
|
Connector Type |
GB/T, CCS1, CCS2 |
|
Output Voltage |
150-1000VDC |
|
Maximum Output Current |
200ADC |
|
Output Power Rating |
60KW/120KW/160KW/180KW |
|
Output Voltage Accuracy |
≤0.5% |
|
Output Current Accuracy |
≤±5% |
|
LCD |
7” Touch LCD Screen |
|
Payment Mode |
RFID Card |
|
Cable Length |
5m |
|
Network Connection |
Cellular modem:GSM/3G/4G LAN：10/100 Base-T Ethernet |
|
Communication Protocal |
OCPP 1.6J |
|
Operating Noise Level |
≤60dBA |
|
Ingress Protection(IP/IK rating) |
IP65/IK10 |
|
Power Meter |
Accuracy Class 1 energy meter |
|
Enclosure |
Galvanized steel |
|
Product Dimension |
1780*800*950mm(H*W*D) |
|
Certification Standard |
IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014，EN 61851-21-1:2018 |
|
Operating Temperature |
-20℃～+55℃ |
|
Storage Temperature |
-40℃～+85℃ |
|
Maxmium Installation Height |
≤2000m |
|
Operating Humidity |
5%-95%RH |
Ingress Protection IP65, IK10
Unlike other products, the top layer of this DV fast charger has a thermal insulation function, which can face all kinds of extreme weather.
