Product Description

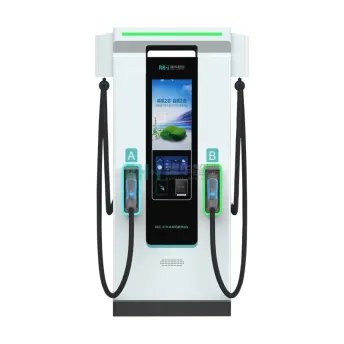

120kw Dc Ev Charger made by Ruihua is the integrated DC charger, It can achieve single gun fast charging, and can also meet the requirements of dual gun and average charging simultaneously. Elevate your electric vehicle charging experience with our high-powered 120kW DC EV Charger. This cutting-edge charging station is designed to deliver lightning-fast charging for electric vehicles, ensuring you're back on the road in no time.
The integrated DC charging device has multiple specifications and models for users, with a power range of 60-360KW. We can provide charging services for all large, medium, and small electric vehicles, suitable for fast charging of electric cars, buses, taxis, logistics vehicles, sanitation vehicles, and other places where charging facility operators operate externally, as well as large parking lots.
1. Integrated Module Control Design
Easy installation and maintenance, Simply and efficient, Safety and stable, general electrician is enough, no necessary of specialist, shorter production cycle, faster delivery
2. Independent air duct design
Independent air duct design, reduced the impact of dust on the charging module, greatly extended the lifespan of charging module.
3. Low Noise, High Protection
IP65, Noise Decibel≤65db.
4. Safe and Reliable
Ensured the EV charger lifespan more than 5 years.
5. Wide Application
Suitable for seaside area with high level of salt fog, mountains and mines with high level of dusty.
|
Parameter |
Model |
RHDC60K-YJG |
RHDC120K-YJG |
|
Input |
Power Supply |
3P+N+PE |
3P+N+PE |
|
Input Voltage |
400V/AC±15% |
400V/AC±15% |
|
|
Input Frequency |
50/60 Hz |
50/60 Hz |
|
|
Input PF |
≥0.98 |
||
|
Input Current Total Harmonics |
≤5% |
||
|
Output |
Output Rated Power |
60kW |
120kW |
|
Output Rated Voltage |
1000V/DC |
||
|
Output Rated Current |
60A |
120A |
|
|
Output Voltage Arrange |
150-1000V/DC |
||
|
Constant Output Power Voltage Arrange |
300-1000V/DC |
||
|
Maximum Current of Each Charging Gun |
200A |
||
|
Current Arrange of Each Charging Gun |
5-200A |
||
|
Maximum Efficiency |
≥95% |
||
|
Precision of Steady Current |
≤±1% |
||
|
Precision of Steady Voltage |
≤±0.5% |
||
|
User Interface |
Status Light |
LED（Green,Yellow,Red） |
|
|
LCD |
7 "Touch LCD Screen |
||
|
Charging Mode |
POS,Scann,Passcode |
||
|
Lenght of Charging Gun Cable |
5m |
||
|
PCS Charging Gun |
Two |
||
|
Communication |
LAN |
Yes |
|
|
4G-LAN |
Yes |
||
|
OCPP |
OCPP1.6 |
||
|
Protection |
Short Circuit Protection |
Yes |
|
|
Over Load Protection |
Yes |
||
|
Leakage Protection |
Yes |
||
|
Over and Under Input Voltage Protection |
Yes |
||
|
Over and Under Output Voltage Protection |
Yes |
||
|
Output Over Current |
Yes |
||
|
Standard |
IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014，EN 61851-21-1:2018 |
||
|
Certificate |
CE |
||
|
Environmental |
Operating Temperature |
-20℃～+55℃ |
|
|
Storage Temperature |
-40℃～+85℃ |
||
|
Relative Humidity |
≤95% Dew Free |
||
|
Altitude |
≤2000m |
||
|
Environmental Conditions |
Indoor or Outdoor |
||
|
Others |
Cooling Mode |
Air Cooling (Independent Air Duct) |
|
|
Sound Volume |
≤65dB |
||
|
IP |
IP65 |
||
|
Electric Energy Measurement |
1.0 Accuracy Grade |
||
|
Installation |
Pole-mount |
||
|
Production Dimension |
1780*800*950 mm (H*W*D) |
||
|
Net Weight |
390kg |
420kg |
|
|
Package |
Wooden box Package |
||
Whether you're a business looking to attract EV drivers or an EV owner seeking a rapid and reliable charging solution, the 120kW DC EV Charger is your answer. Experience the future of EV charging with a station that delivers speed, power, and dependability. Invest in the 120kW DC EV Charger and supercharge your electric vehicle journey. Contact us today to order!
Our 120kW Advertising Screen Charging Station not only powers your EV but also provides an innovative platform for promotions, advertisements, and vital information.
120kW EV Charger – a powerhouse in electric vehicle charging technology. Our 120kW DC Charger is not only a fast and efficient solution for EV owners but also a versatile and innovative addition to any charging station.
Experience lightning-fast charging with our 120kW DC Charger, the future of electric vehicle refueling.
Our 120V EV Charger combines efficiency and innovation, ensuring you're always in charge of your electric vehicle's readiness.
Whether you're a business aiming to attract EV users with innovative advertising opportunities or an EV owner seeking the ultimate in speed and convenience, the 120kW DC EV Charger is the answer. Embrace the future of EV charging with a station that combines power, versatility, and innovation. Make the smart choice for your charging needs with our 120kW EV Charger.
