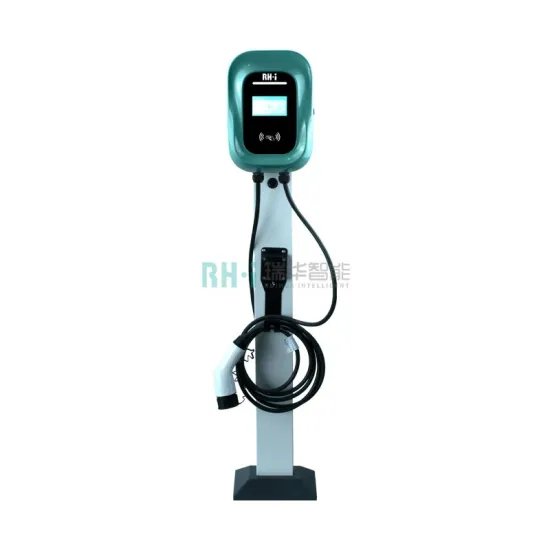

11kw EV Charger​, Home AC Charger

11kw Smart Home Ev Charger is three phase AC charging pile with maximum 32A output current, specially designed for private use or personal car park.

And it’s three power type: 7kw,11kw,22kw. All of them are with CE certificate in accordance with EN IEC61851-1:2019 & EN IEC61851-21-2:2018.

Product Description

Upgrade your home charging experience with the cutting-edge 11kW Smart Home EV Charger. This powerful 11kW EV charger is designed to meet the ever-growing demands of electric vehicle owners, providing rapid and efficient charging from the comfort of your home.



11kw Smart Home Ev Charger Main Function



1. Intelligent Self-Inspection, Intelligent Charging

2. Intelligently examine if the charging connector is properly connected, It will immediately stop the output to ensure safety when the charging connector is abnormally disconnected.

3. Over voltage and Under voltage protection function. It will automatically cut off the charging power supply while issuing an alarm signal.

4. Short-Circuit, Leakage protection, Lightning protection function

5. Intelligent networking and re-connection function while offline

6. Support for various of charging methods: such as scanning code, swiping card, inserting guns for chargin

7. Support 4.3 inches color display function.



OCPP EV charging solution



7kw & 11kw & 22kw Smart AC Charger.

60kw & 90kw & 120kw & 150kw & 180kw DC charger.

OCPP 1.6J and OCPP 2.0.1 full profile supported.



11kw Home Ev Charger Key Features



Fast and Efficient Charging: The 11kW EV Car Charger offers lightning-fast charging speeds, ensuring your electric vehicle is ready to hit the road in no time.



Versatile Compatibility: This 11kW Type 2 Electric Vehicle Car Charger Station For Home is compatible with a wide range of electric vehicle models, making it a versatile choice for all EV owners.



Smart Charging: Our 11kW Smart Home EV Charger incorporates smart technology, allowing you to remotely monitor and control your charging sessions via a user-friendly app.



Compact and Stylish Design: The 11kW Home EV Charger features a sleek and compact design, blending seamlessly with your home's aesthetics.



Safety First: Safety is our priority, and the 11kW AC Charger is equipped with advanced safety features, including over-voltage and over-current protection.



Easy Installation: Installing the 11KW TYPE 2 EV CHARGER is a breeze, thanks to its user-friendly setup that ensures hassle-free integration into your home.



How fast is a 11kw charger​ ?



An 11 kW EV charger provides roughly 50-70 km (about 30-43 miles) of range per hour, depending on the vehicle and its battery efficiency. This is a Level 2 AC charger, commonly used for home and workplace charging, and it can charge most EVs fully within 6-8 hours if the battery is nearly empty. However, charging speed may vary based on the car’s maximum onboard charger capacity, battery size, and charging efficiency.



What’s the difference between 7kW and 11kW EV chargers?



The difference between a 7kW EV charger and an 11kW EV charger is the charging rate. Simply put, 11kW chargers will charge faster than a 7kW EV charger due to the higher charging rate, adding 38-40 miles of range per hour compared to 7kW chargers that add 25-30 miles of range per hour.

11kW chargers are, therefore, nearly sixty per cent faster than a 7kW charger.



Does an 11kW EV charger need a 3-phase electricity supply?



Yes, an 11 kW EV charger typically requires a 3-phase electricity supply. Most residential single-phase systems supply up to 7.4 kW, so to achieve 11 kW, a 3-phase connection is generally necessary.

Anything higher than 7kW, including 11kW and 22kW EV chargers, will need a three-phase electricity supply in order to provide the higher charging rate – whether at home or at your commercial/workplace property.



Which electric cars can charge at 11kW?



The Tesla Model S, Model X, and Model Y are well-known EVs capable of 11kW charging, provided they have a compatible charging cable with a Type 2 connector and access to a suitable charging station.

Alongside Tesla, here are some other EV models that are compatible with 11 kW AC charging when using a Type 2 connector and appropriate infrastructure:

(1) Audi e-tron
(2) BMW i3
(3) Mercedes-Benz EQC
(4) Porsche Taycan
(5) Renault Zoe

For users considering an 11 kW charger, checking the EV’s manual or contacting the manufacturer ensures the vehicle's onboard charger can handle 11 kW, as some EVs might support only lower charging capacities on AC power.



Which electric cars can charge at 11kW?Is it worth investing in an 11kW home EV charger?



In our opinion, if you want a higher EV charging rate, you should go for a 22kW EV charger rather than an 11kW EV charging point, as upgrading to a three-phase electricity supply is expensive and time-consuming. With little price difference between an 11kW and 22kW EV charger, you might as well invest in the highest charging rate available at home if you are choosing to upgrade your electricity supply. Why? Because this could future-proof your unit if you decide to invest in a new EV that can handle higher charging rates.

Another point to consider is your electric vehicle’s maximum onboard charging rate. While EVs can take advantage of higher DC charging rates – such as public chargers at motorway stations at 50kW and above (sometimes referred to as rapid chargers) – each EV has a maximum AC charging rate.

Most EVs have a maximum onboard charging rate of 7kW, which is why 7kW EV charging at home is the most common. Therefore, if your maximum AC onboard charging rate is 7kW and you invest in an 11kW home charger, you, unfortunately, won’t charge any faster.

When it comes down to the choice between a 7kW or 11kW home charger, it’s best to assess how desperately you want the additional charge compared to the large cost of updating the three-phase. That being said, if your electric car has an 11kW or higher onboard charger and you are willing to pay the additional costs, you will charge faster – meaning shorter charging sessions.



How much does it cost to install an 11kW EV charger at home?



On average, the home charge point installation cost of an 11kW EV charger will be more than a 7kW EV charger installation. While a standard 7kW home EV charger installation is around £800-£1,200, an 11kW EV charger (not including the upgrade to three-phase) will be more – estimating around £1,200- 1,500 fully installed – not including the additional cost to upgrade to three-phase.

Of course, similar to 7kW, it depends on whether your installation falls under a standard installation – for example if more than 10 metres of cabling is needed, additional costs will be accrued.



11kw Smart Home EV Charger Details



11kw Smart Home EV Charger

Request a free quote!



11kw Home Ev Charger Specification



Model

RHAC07K-X

RHAC11K-X

RHAC21K-X

Application

Residental / Commercial

Voltage and Wiring

Single Phase 230V

Three Phase 400V

Three Phase 400V

Frequency

50/60 Hz

Maximum Current

32A

3*16A

3*32A

Rate Power

7KW

11KW

21KW

Charge Connector

Type-2 Socket or Type-2 Tethered 5m

RCD

30mA AC & 6mA DC



Electrical Protecton

Over current, Under voltage,

Over voltage, Over temperature,

Surge protecton, Short circuit, Ground fault

Indicatons

Green/blue/Red

Network Connectvity

Ethernet, WLAN, Celluar

RFID

MifareISO/IEC14443A

Display

4.3 inch LCD

Data Protocol

OCPP1.6J, OCPP2.0.1

DLB

Dynamic Load Balancing

Operaton Temp.

-30 °C ~ 50 °C / -22 °F ~ 122 °F

Storage Temp.

-40 °C ~ 70 °C / -40 °F ~ 158 °F

Working Humidity

5%~95% without condensaton

Mountng Type

Wall Mount (default) / Floor post (optonal accessory)

Ingress Protecton

IP65

Dimension

350*250*122 mm (H*W*D)

Carton Dimension

440*400*190 mm (L*W*H)

Net Weight

6.5 kg

7.5 kg

9.5 kg

Gross Weight

9.5 kg

8.5 kg

10.5 k

External Package

Carton

Certfication

CE, IEC 61851-1, IEC 62196-2



A Guide to 11kW EV Chargers



• 11kW EV chargers charge nearly 60% faster than 7kW chargers and provide approximately 38-40 miles of range per hour.


• 11kW EV chargers require a three-phase electricity supply and cannot be installed on single-phase properties.


• Consider your electric vehicle’s maximum onboard charging rate before deciding to invest in an 11kW home EV charger – it may not be able to accept an 11kW charging rate.


• Electric vehicles such as Audi e-tron, BMW i3, Mercedes-Benz EQC, Porsche Taycan, Renault Zoe, and some Tesla models can charge at 11kW.


• The installation cost of an 11kW EV charger is higher than a 7kW charger, and it varies based on factors such as electrical infrastructure, charging station equipment, labour, and additional upgrades.

11kw Smart Home EV Charger

Precautions

1. Please read the product manual carefully before using this device, and operate according to the instructions in the manual.

2. This product should not be installed in places with flammable and explosive gases

3. Before use, it must be confirmed that the installation of each line is normal and firm, and it is reliably grounded

4. Be careful when plugging and unplugging the charging gun and cable, and do not use too much force

5. When card swiping operation starts and stops charging, card can be removed after hearing "beep" sound from charging pile, otherwise operation may fail.



FAQ about 11kW EV Chargers



How fast does an 11kW EV charger charge?


11kW EV charging is classified as fast charging, with 11kW EV chargers providing approximately 38-40 miles of range per hour at 11 kilowatts. Overall, an 11kW EV charger charges an electric vehicle at a faster rate compared to a 7kW charger but slower than a 22kW EV charger. Of course, charging your car depends on a number of factors; the state of the battery (full charge or top-up), weather conditions, the number of electric vehicles, and more.



What's the difference between 7kW and 11kW EV chargers?


The difference between a 7kW EV charger and an 11kW EV charger is the charging rate – 11kW chargers will charge faster than a 7kW EV charger due to the higher charging rate, adding 38-40 miles of range per hour compared to 7kW chargers that add 25-30 miles of range per hour. 11kW chargers are, therefore, nearly sixty per cent faster than a 7kW charger.



Does an 11kW EV charger need a 3-phase electricity supply?


In short, you cannot have an 11kW electric car charger installed on a single-phase electricity supply. Anything higher than 7kW, including 11kW and 22kW EV chargers, will need a three-phase electricity supply in order to provide the higher charging rate – whether at home or at your commercial/workplace property. Most domestic UK properties have single-phase electricity supplies, so if are interested in upgrading to a three-phase electricity supply, you will need to consult with your local DNO to determine if a three-phase supply can be installed before you can have an 11kW car charger.



With the 11kW Smart Home EV Charger, you have a reliable and efficient 11kW smart home EV charging solution at your fingertips. Enjoy the convenience of charging your electric vehicle at home and ensure it's always ready for your next adventure. Make the smart choice for your home charging needs with our 11kW Smart Home EV Charger.
