Product Description
R & D and manufacturing, wall-mounted single-gun AC 7KW. 11KW. 22KW series product capabilities;
R & D and manufacturing, wall-mounted/floor dual-gun AC 14KW series product capabilities;
R & D and manufacturing, wall-mounted single gun DC 20KW.30KW.40KW series product capabilities;
R & D and manufacturing, landing single gun DC 20KW. 30KW. 40KW. Series product capabilities;
R & D and manufacturing, landing double gun DC 40KW. 60KW. 80KW. 120KW. 160KW. 180KW. 360kW series product capabilities;
R & D and manufacturing, 240KW one for four, 360KW one for six, 480KW one for eight, 600KW one for ten, flexible charging pile series product capabilities;R & D and manufacturing, European standard,

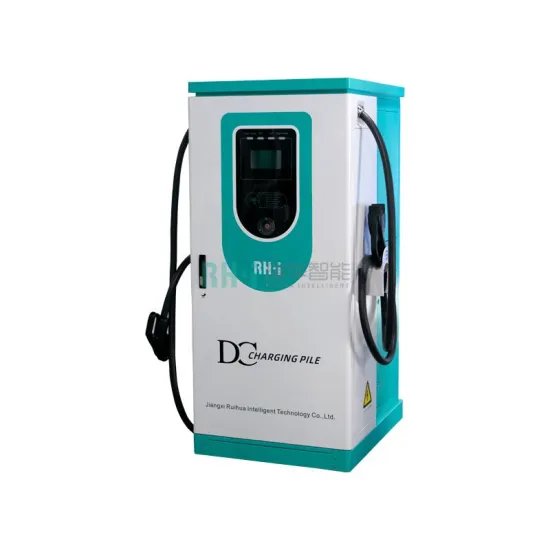

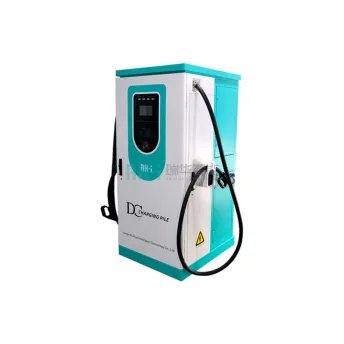

Ruihua High Power DC Fast Charger with CE certificate.
Ruihua is a 100% OEM/ODM EV charger Manufacturer more than 16 years, with 80000 square meters for production base and over 400 workers.
► Residential EV Charging Stations: Elevate your home with our Residential EV Charging Stations, designed for convenience, efficiency, and seamless integration into your lifestyle.
► Commercial EV Charging Stations: As Commercial EV Charging Station Manufacturers, we take pride in delivering scalable and intelligent solutions for businesses seeking to embrace sustainable transportation.
► Dual Port EV Charging Station: Our Dual Port EV Charging Stations offer versatility, catering to multiple users simultaneously without compromising on charging speed.

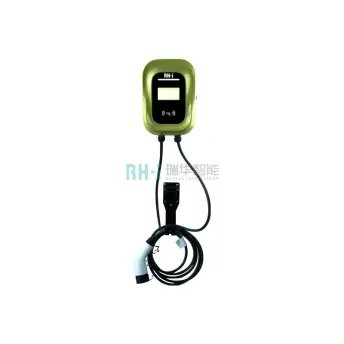

► Wall-Mounted EV Charging Station: Discover the space-saving efficiency of our Wall-Mounted EV Charging Stations, combining functionality with a sleek and modern design.
►
Positioned at the forefront of the EV revolution in China, we are your trusted local partner for innovative and reliable EV charging solutions. Contact us now to cooperate!
• Multi-standard: CCS1, CCS2, CHAdeMO
• Network or standalone operation
• Support smart charging and load balancing
• Multiple protection to ensure users’ safety
• OCPP 1.6 JSON/ OCPP 2.0.1
( Comply with latest OCPP protocol as Ruihua is the member of OCA )
|
Input Connection |
3-Phase : 3P+N+PE |
|
Input Voltage |
400V/AC ±15% |
|
Frequency |
50Hz or 60Hz |
|
THDi |
≤5% |
|
Power Factor |
≥0.98 |
|
Output Voltage |
150Vdc - 1000Vdc |
|
Max. Output Current |
200A（ 250A optional） |
|
Rated Power |
120kW - 240kW |
|
User Interface & Control |
|
|
LCD Display |
7" Color Touch Screen |
|
LED Indicator |
Green/Yellow/Red |
|
Charging Interface |
CCS2 Plug( CCS1 Plug / CHAdeMO optional ) |
|
Number of Charging Interface |
2 |
|
Energy Measuring |
Embedded meter, with 1% accuracy |
|
Communication |
|
|
Backend |
Ethernet( Bluetooth / Wi-Fi/ 4G Optional ) |
|
Charging Protocol |
ISO 15118 , DIN 70121 |
|
Backend Protocol |
OCPP 1.6 JSON ( OCPP2.0.1 ) |
|
Protection |
|
|
Residual Current Device |
Yes |
|
Internal Fuse |
Yes |
|
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- |
|
Environmental |
|
|
Operating Temperature |
-30℃—+55℃ |
|
Storage Temperature |
-40℃—+75℃ |
|
Operating Humidity |
Max. 90% RH, Non-Condensing |
|
Operating Altitude |
≤ 2000m |
|
IP, IK Level |
IP65, IK10 |
|
Cooling Method |
Independent air duct |
|
Mechanical |
|
|
Product Dimension |
1780*800*950 mm (H*W*D) |
|
Charging Cable Length |
5m |
|
Weight |
60kw: 390kg; 120kw: 420kg; |
|
Mounting |
Free Standing |
|
Certifications |
|
|
Certifificate |
IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 |
|
Safety |
CE |
|
EMC |
Class B |
• Quality Assurance: As Manufacturers of EV Charging Stations, we uphold the highest standards of quality, ensuring that each product meets rigorous testing and certification.
• Comprehensive Solutions: From Home EV Charging Stations to cutting-edge Commercial EV Charging Stations, our range caters to diverse needs, providing end-to-end solutions.
• Global OEM/ODM Capabilities: Leverage our OEM/ODM expertise to customize charging stations according to your specifications, giving you a unique edge in the market.
• Competitive Pricing: Benefit from competitive pricing without compromising on quality, making Ruihua your reliable source for Wholesale EV Charging Stations.
• Nationwide Reach: With EV Charging Stations across China, our company ensures widespread accessibility, supporting the nationwide growth of electric mobility.
Ready to explore the future of EV Charging? Contact us today for inquiries, quotes, or to discuss how our EV Charging Station Companies can meet your specific needs.
• Install EV Charging Station: Simplify the installation process with our expert guidance. We provide comprehensive support to ensure a smooth and efficient setup.
• Buy EV Charging Station: Explore our catalog and buy EV Charging Stations tailored to your requirements. Join the sustainable revolution with Ruihua.
Embrace the future of electric mobility with Ruihua – your trusted EV Charging Station Suppliers offering innovative, reliable, and scalable solutions for a cleaner and more sustainable tomorrow.
