Home Mini Wallbox Car Charging Pile

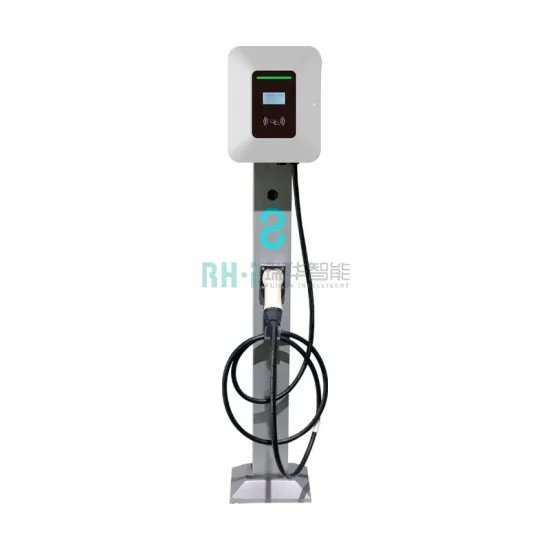

New Design 7kw home AC electric Car Charging Pile- RHAC-J Series
RHAC-J is the column designed by our company for the floor-mounted installation of 7KW AC charging piles. The main body is made of 80mm*60mm cold-galvanized square tube with a height of 1.5m. Selected SGCC galvanized steel, with higher strength, and the surface is evenly covered with outdoor special anti-rust powder, which is corrosi

Product Description

New Design 7kw home AC electric Car Charging Pile- RHAC-J Series

RHAC-J is the column designed by our company for the floor-mounted installation of 7KW AC charging piles. The main body is made of 80mm*60mm cold-galvanized square tube with a height of 1.5m. Selected SGCC galvanized steel, with higher strength, and the surface is evenly covered with outdoor special anti-rust powder, which is corrosion-resistant and not easy to rust. The inside of the square tube can be used for routing input cables and network cables, and the outside provides hooks to store the charging gun harness.

Features:

  1. High Level Protection

It has IP54 work for safe protection

  1. Safe and Reliable

With surge protection, short circuit protection, over current protection, over temperature protection, over/under load protection,leakage protection...etc functions.

  1. Strong compatibility and expandability

It can suit for 99% vehicle in the market

  1. Intelligent and Convenient

Support 4G,WIFI,Bluetooth,Ethernet for connection, It can be charged by APP, RFID Card, and check the charging status...etc functions

  1. Wide Application

Suit for outdoor high temperature,wet and dusty environment, and Parking lots like high-end residential areas, office buildings, large shopping malls, hotels and other public places



Parameters:

Serial Number

Name

Description

1

Model

RHAC7K-J

RHAC11K-J

2

Rate Power

7KW

11KW

3

Input Voltage

230V AC

400V AC

4

Output Current

32A

3*16A

5

Output Voltage

230V AC

400V AC

6

Weight

6.5KG(Wallbox)

7KG(Wallbox)

7

Number of Gun

Single

8

Certificate Standard

IEC 61851-1:2017, IEC 61851-23:2014, EN 61851-24:2014,EN 61851-21-1:2018

9

Input Frequency

50Hz

10

Interface

4.3” color LCD Screen

11

Connection

Ethernet,4G,Bluetooth,WIFI

12

Charging Mode

auto fully charging, timing..etc

13

Start Mode

APP, RIFD Card

14

Cloud Platform

Support OCPP1.6J

15

Safe

surge protection, short circuit protection, over current protection, over temperature protection, over/under load protection,leakage protection...etc functions

16

Energy Meter

1.0

17

Ingress Protection

IP54

18

Environment

Indoor and Outdoor

19

Cooling Method

Nature Cooling

20

Work Temperature

-20℃~+50℃

21

Storage Temperature

-40℃~+70℃

22

Humidity

5%-95%Dew Free

23

Altitude

≤2000

24

Installation

Column Or Wall-mounted

25

Cable Length

3.6m

26

Product Size

256*320*131mm(W*H*D)

27

Exit Direction

Down in and out
